Shift Link Assembly: Removal

  1. Remove the manual transmission assembly from the vehicle. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY75)>MANUAL TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the back-up light switch and the neutral position switch. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY75)>SWITCHES AND HARNESS>REMOVAL .
  3. Remove the transfer case together with the extension case assembly. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY75)>TRANSFER CASE AND EXTENSION CASE ASSEMBLY>REMOVAL .
  4. Remove the extension case assembly.
  5. Remove the center differential and transfer driven gear as a unit. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY75)>TRANSFER DRIVEN GEAR>REMOVAL .

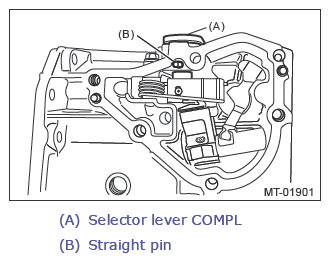

  6. Pull out the straight pin.
    G13647736Courtesy of SUBARU OF AMERICA, INC.

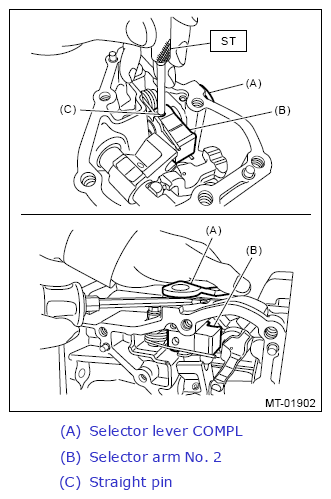

  7. Use the ST to remove the straight pin, and remove the selector lever COMPL.

    ST 398791700 REMOVER

    G13647737Courtesy of SUBARU OF AMERICA, INC.

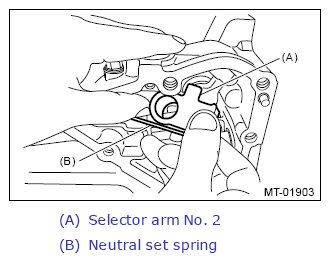

  8. Remove the selector arm No. 2.
    G13647738Courtesy of SUBARU OF AMERICA, INC.

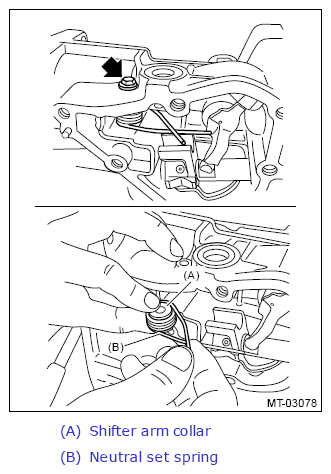

  9. Remove the bolts and remove the shifter arm collar and neutral set spring.
    G13647739Courtesy of SUBARU OF AMERICA, INC.

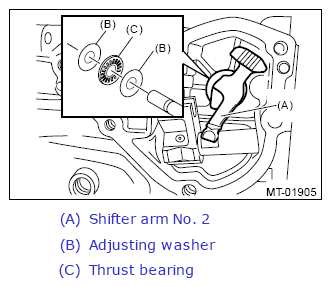

  10. Remove the shifter arm No. 2, adjusting washers and thrust bearing.
    G13647740Courtesy of SUBARU OF AMERICA, INC.

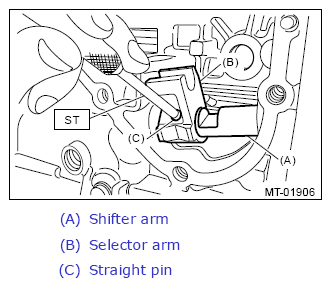

  11. Use the ST to remove the straight pin, and remove the shifter arm and selector arm.

    ST 398791700 REMOVER

    G13647741Courtesy of SUBARU OF AMERICA, INC.

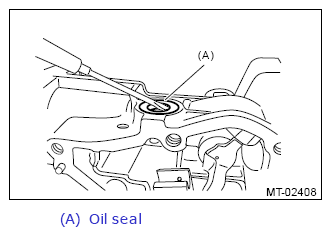

  12. Remove the oil seal using a screwdriver wrapped with tape, etc.
    NOTE: The illustration shows the oil seal of selector lever COMPL. Perform the same procedures for removing the shifter arm No. 2.
    G13647742Courtesy of SUBARU OF AMERICA, INC.

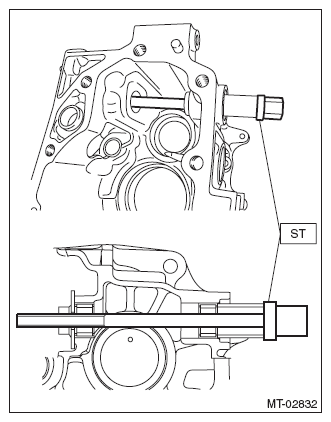

  13. Remove the needle bearing by using a tube with the diameter of 20 mm (0.79 in) or 21 mm (0.83 in) and the ST.

    ST 18763AA000 COMPRESSOR SHAFT

    G07915124Courtesy of SUBARU OF AMERICA, INC.
    G09482620Courtesy of SUBARU OF AMERICA, INC.
  14. Set ST1, ST2 and transfer case to a press.
    NOTE:
    • Set the ST2 under ST1.
    • Set the transfer case so that the hole for shifter arm is positioned vertically.

    ST1 498267300 CYLINDER HEAD TABLE

    ST2 498267200 CYLINDER HEAD TABLE

    G07915126Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the roller bearing by using a round bar with the diameter of 22 mm (0.87 in) or 23 mm (0.91 in).
    G07915127Courtesy of SUBARU OF AMERICA, INC.

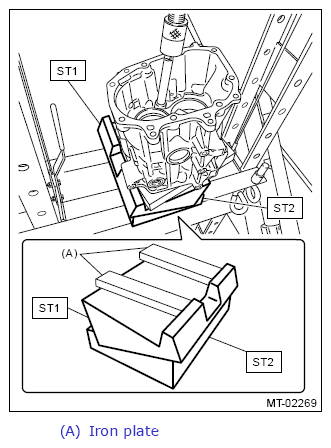

  16. Flip over the transfer case, and set an iron plate between transfer case and ST.
    NOTE:
    • Insert the iron plate which is thicker than the exposed length of the transfer case knock pin between the ST and transfer case.
    • Set the iron plate so that the transfer case knock pin does not ride on the iron plate.
  17. Remove the roller bearing by using a tube with the diameter of 22 mm (0.87 in) or 23 mm (0.91 in).
    G13647747Courtesy of SUBARU OF AMERICA, INC.

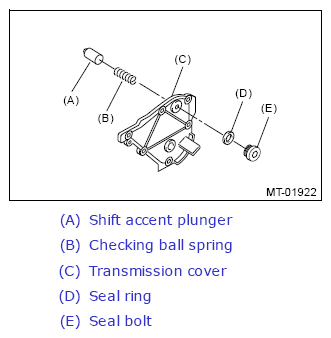

  18. Remove the shift accent plunger and the check ball spring.
    G13647748Courtesy of SUBARU OF AMERICA, INC.
