Main Shaft Assembly

WARNING: This page is about a different variant/trim than selected.

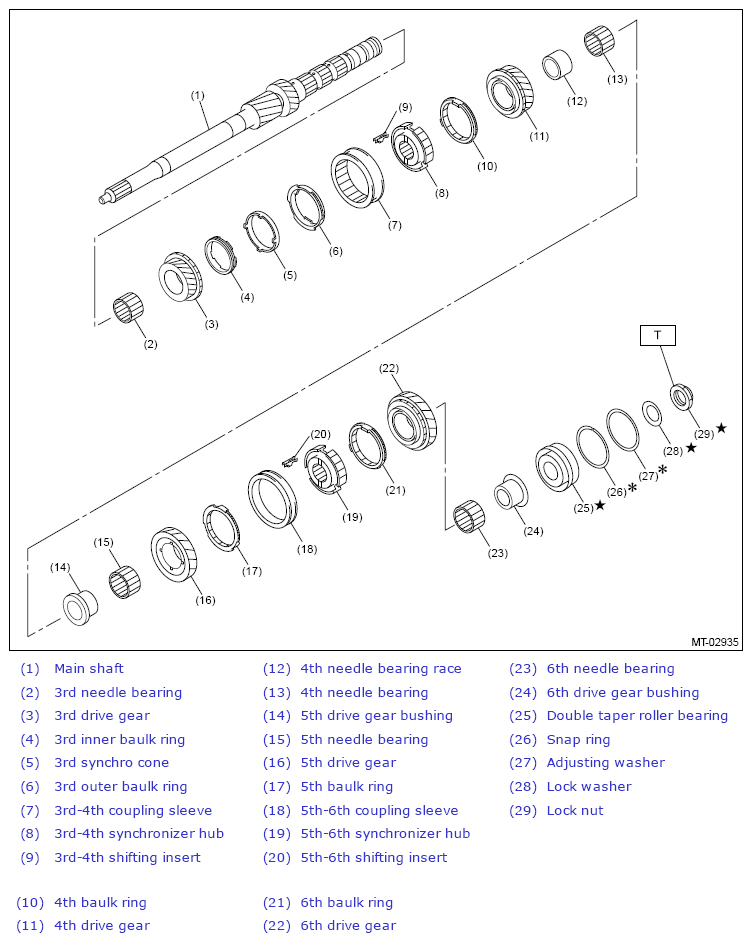

Fig 1: Main Shaft Assembly Components (With Torque Specification)
G13647926Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 392 (40.0, 289.1)
