Extension Case And Center Differential

WARNING: This page is about a different variant/trim than selected.

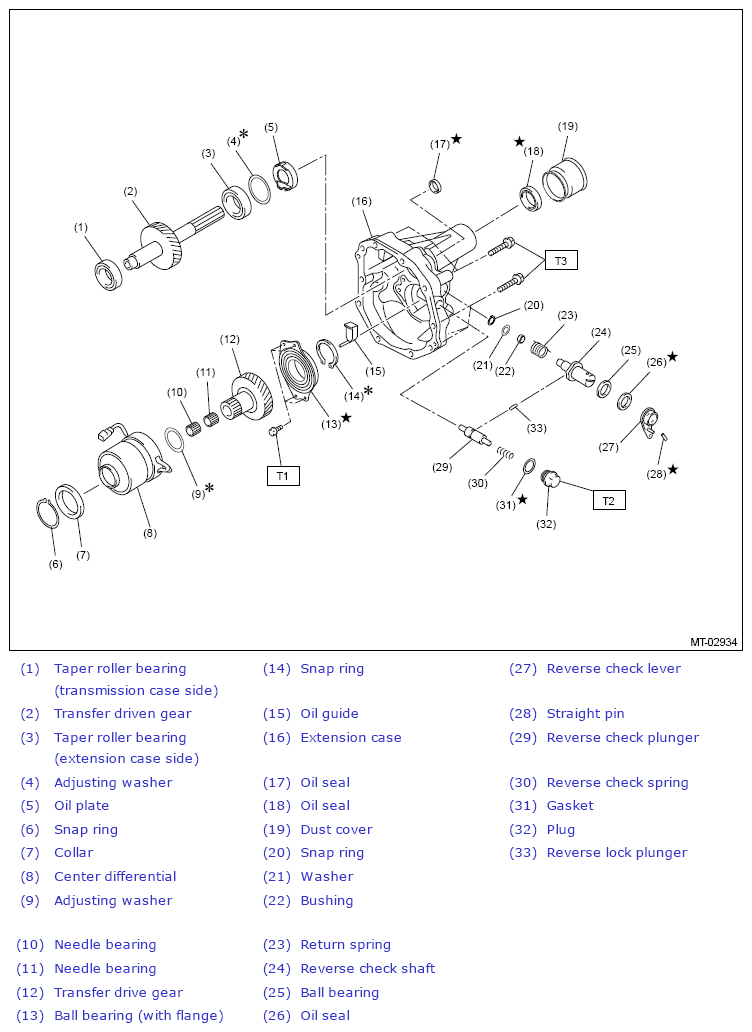

Fig 1: Extension Case And Center Differential Components (With Torque Specification)
G13647924Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 41 (4.2, 30.2)

T3: 48 (4.9, 35.4)
