Adapter Plate

WARNING: This page is about a different variant/trim than selected.

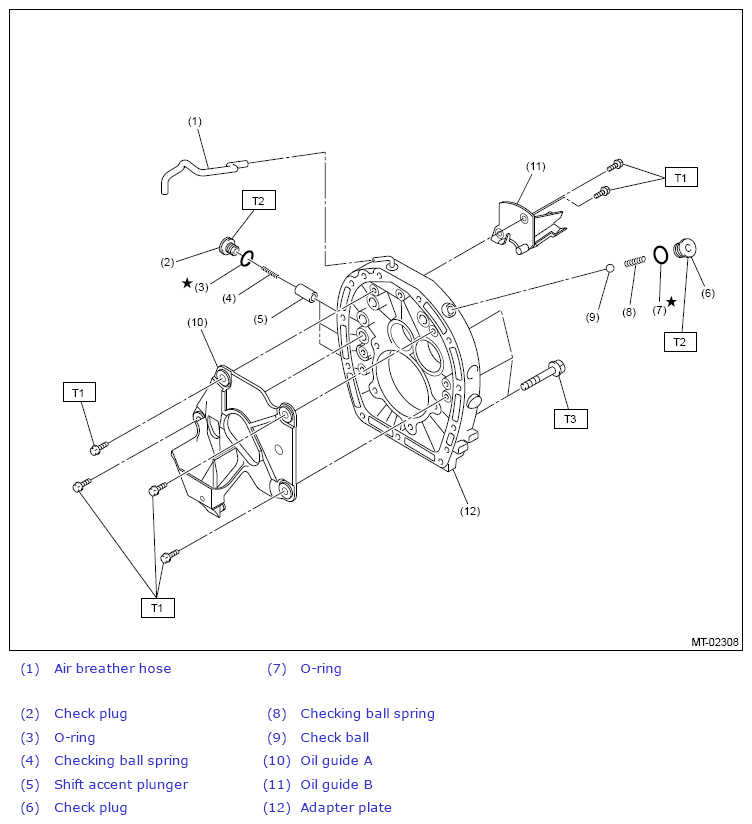

Fig 1: Adapter Plate Components (With Torque Specification)
G13647921Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: 25 (2.5, 18.4)

T3: 50 (5.1, 36.9)
