Differential Side Retainer
WARNING: This page is about a different variant/trim than selected.
NOTE:
Install the oil seal and O-ring of side retainer after the adjustment of backlash and tooth contact.
- Attach the taper roller bearing outer race to the differential side retainer.

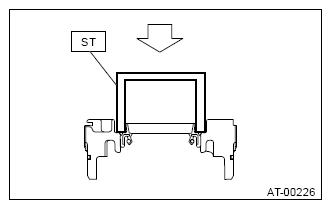

- Using the ST, install the oil seal.
ST 18675AA000 DIFFERENTIAL SIDE OIL SEAL INSTALLER
NOTE:
- Use a new oil seal.
- Apply oil to the oil seal lips.
 Courtesy of SUBARU OF AMERICA, INC.
|

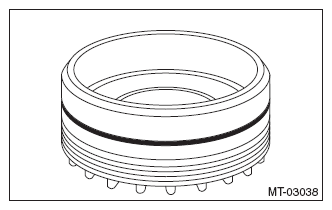

- Install the O-rings.
NOTE:
Use new O-rings.
 Courtesy of SUBARU OF AMERICA, INC.
|
