Oil Pipe: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery.
  2. Remove the intercooler. Refer to INTAKE (INDUCTION) (STI)>INTERCOOLER>REMOVAL .
  3. Remove the turbocharger upper cover.
    G08539588Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the oil inlet pipe from the turbocharger.
    CAUTION: In order to prevent damaging the oil pipe on the cylinder head side, fix the section (a) shown in the figure when loosing the oil inlet pipe flare nut, and avoid the part from rotating together while loosening the nut.
    G08539589Courtesy of SUBARU OF AMERICA, INC.
    G08539590Courtesy of SUBARU OF AMERICA, INC.

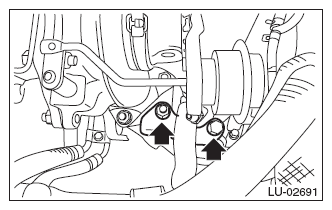

  5. Remove the turbocharger stay.
    G08539591Courtesy of SUBARU OF AMERICA, INC.

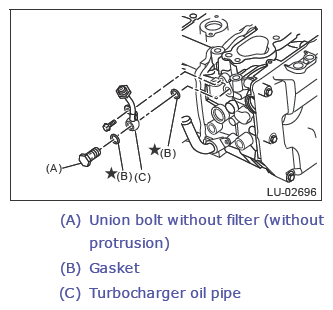

  6. Remove the turbocharger oil pipe.
    G13640886Courtesy of SUBARU OF AMERICA, INC.
  7. Drain engine coolant. Refer to COOLING(STI)>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  8. Remove the intake manifold. Refer to FUEL INJECTION (FUEL SYSTEMS) (STI)>INTAKE MANIFOLD>REMOVAL .
  9. Remove the secondary air pump. (Oil pipe LH only) Refer to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (STI)>SECONDARY AIR PUMP>REMOVAL .

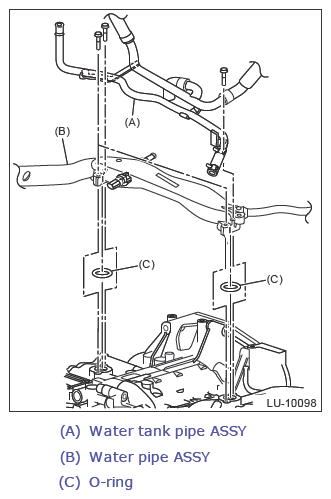

  10. Remove the bolt securing the water tank pipe assembly, and place the water tank pipe assembly aside so that it does not interfere with the work. (Oil pipe RH only)
  11. Remove the water pipe assembly. (Oil pipe RH only)
    NOTE: Do not remove the radiator inlet hose and heater outlet hose.
    G13640887Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the radiator main fan and radiator sub fan. Refer to COOLING(STI)>RADIATOR MAIN FAN AND FAN MOTOR>REMOVAL . Refer to COOLING(STI)>RADIATOR SUB FAN AND FAN MOTOR>REMOVAL .
  13. Remove the V-belts. Refer to MECHANICAL(STI)>V-BELT>REMOVAL .
  14. Remove the crank pulley. Refer to MECHANICAL(STI)>CRANK PULLEY>REMOVAL .
  15. Remove the timing belt cover. Refer to MECHANICAL(STI)>TIMING BELT COVER>REMOVAL .
  16. Remove the timing belt. Refer to MECHANICAL(STI)>TIMING BELT>REMOVAL .
  17. Remove the cam sprocket LH. Refer to MECHANICAL(STI)>CAM SPROCKET>REMOVAL .
  18. Remove the timing belt cover No. 2 LH.
    G08539489Courtesy of SUBARU OF AMERICA, INC.

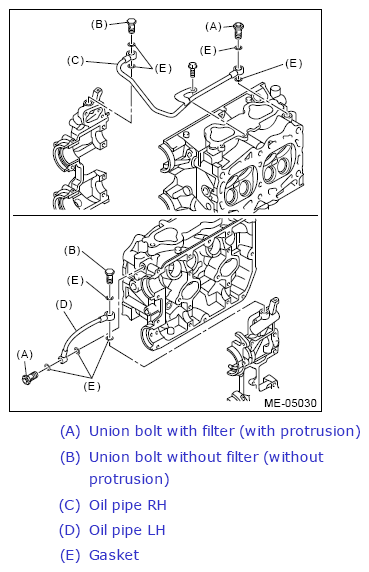

  19. Remove the oil pipe.
G13640889Courtesy of SUBARU OF AMERICA, INC.
