Section 1 (Engine Starting System & Charging System (2.5L)): Starter: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the ground cable from battery.
- Remove the intercooler. Refer to INTAKE (INDUCTION) (STI)>INTERCOOLER>REMOVAL .
- Disconnect the connector (B) and terminal (A) from starter.

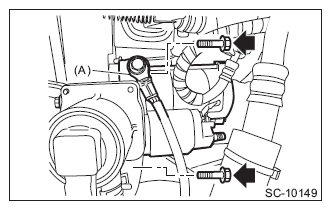

- Disconnect the terminal (A) from the cable stay and remove the cable stay and starter from the transmission.
CAUTION:
In order to prevent damaging the terminal (A), fix the terminal (A) when loosing the bolt, and avoid the part from rotating together while loosening the bolt.
