HARMAN AUDIO/INFOTAINMENT: TROUBLESHOOTING USB FUNCTIONALITY CONCERNS

TECHNICAL SERVICE BULLETIN

APPLICABILITY

All Models Equipped with Harman Audio/Navigation Head Units

INTRODUCTION

This bulletin provides troubleshooting steps to follow when diagnosing customer concerns regarding USB functionality. Please start by completing the Harman Investigation Guide Questionnaire as it gathers important details which will help with diagnosis and will be required should the condition not be resolved by this troubleshooting. While completing the questionnaire, follow the question flow based on the customer concern. Answer each related question noting the results to each in detail while performing the diagnostics. Review the entire bulletin before beginning in order to understand the flow for the listed concern. Please apply the information captured in the checklist to the Harman Investigation Guide Questionnaire. If the concern you have is not listed, check the Service Manual "Infotainment (Diagnostics) - Diagnostics with Phenomena" section as a starting point.

SERVICE PROCEDURE/INFORMATION

Please complete checklist provided at the end of the document and keep it available for future reference.

REMINDER:  Customer satisfaction and retention starts with performing quality repairs.

1. Always confirm the condition as reported by the customer.
2. This section addresses USB detection symptoms.

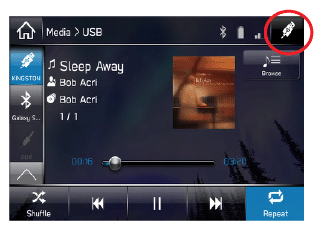

   1. Confirm the USB is recognized (USB icon appears) on the Media screen as shown in the figure to the right.
   2. If the USB is not recognized, follow Service Diagnostic Mode from the Service Manual:
      1. Turn the ignition switch to ACC.
      2. Press the "TUNE/SCROLL" button six times while pressing the "HOME" button.
         1. SERVICE INSPECTION:
            1. CONNECTION
               1. On Service Menu, press "Connection"  to display the list of items.
               2. OK  : Each device is connected properly.
               3. NG  : Connection is not established, or connection status (possibly including the related harness) is faulty.
                  NOTE:

                  • The USB connection showing "NG" when no USB device is connected to USB ports is normal.
                  • If the concern involves "CarPlay not working", make sure a genuine Apple cable is used. In some cases, aftermarket cables may cause connection issues.
                  • If the concern involves "Android Auto not working", try using another cable since Android phones do not require use of a genuine cable.
      3. Do other USB devices work in the suspect vehicle? If yes, check the USB device's operation in another like vehicle.
      4. Please provide detailed information regarding the USB device (brand, device type, file system, types of files on device, etc.).
3. This section addresses issues related to Apple CarPlay and/or Android Auto not launching consistently due to poor connectivity to USB Media.

   New firmware has been released to enhance connectivity for Auxiliary Terminal part numbers used with MID and HIGH level head units.

   NOTE: The BASE model utilizes a different Auxilliary Terminal part number which is not affected.
4. If the above steps do not resolve the customer's concern with USB functionality, complete a fresh Harman Investigation Guide Questionnaire documenting the customer's concern and the results of each diagnostic step in this bulletin. If possible, capture a video of the condition then contact the SOA Techline to review the next steps. Techline will request you send the completed questionnaire, step-by-step bulletin test results and any videos of the condition.

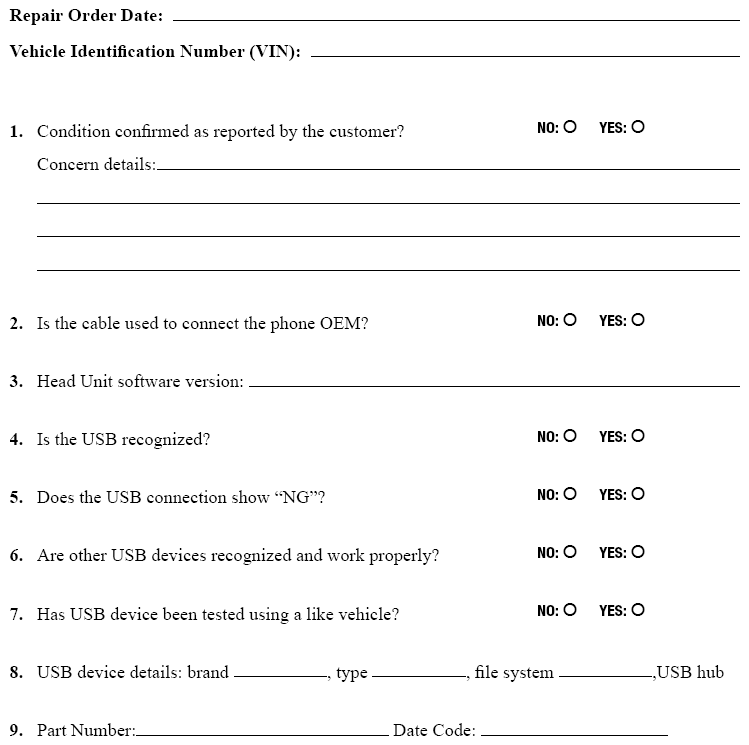

USB FUNCTIONALITY CONCERNS AND TROUBLESHOOTING CONCERN CHECKLIST

WARRANTY/CLAIM INFORMATION

For vehicles within the Basic New Car Limited Warranty period or covered by an active Subaru Added Security Gold plan, this repair may be submitted using the following claim information:

Labor Description	Labor Operation #	Labor Time	Fail Code	H/U Type
HARMAN USB TROUBLESHOOTING	A850-873	0.5	ZLI-43	Base, Mid & High
