Boot Steering Gearbox
Inspect both sides of the boot steering gearbox as follows, and correct the defects if necessary.

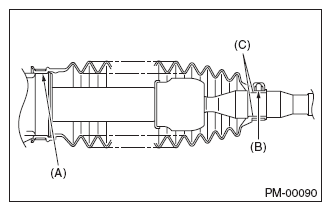

- The (A) and (B) positions of the boot steering gearbox are fitted in (A) and (C) grooves of the steering gearbox assembly and the tie-rod.
- Clips are fitted onto the boot steering gearbox grooves at the positions (A) and (B) of the boot steering gearbox.
- Check that there is no cracks or holes in the boot steering gearbox.
NOTE:
Rotate (B) position of boot steering gearbox against the torsion produced by the adjustment of toe-in etc. Apply grease to the groove (C).
Grease:
SILICONE GREASE G-40M
