Section 5 (Engine Intake System (Induction) And Turbocharger (2.4L)): Intercooler: Disassembly

WARNING: This page is about a different variant/trim than selected.

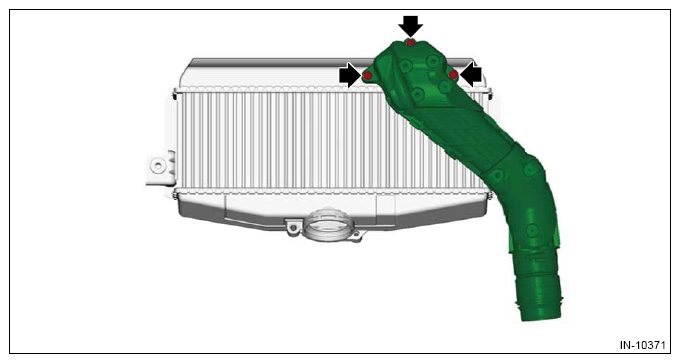

  1. Remove the intake duct No. 3.
G13948732Courtesy of SUBARU OF AMERICA, INC.
