Rear Drive Shaft: Disassembly

WARNING: This page is about a different variant/trim than selected.

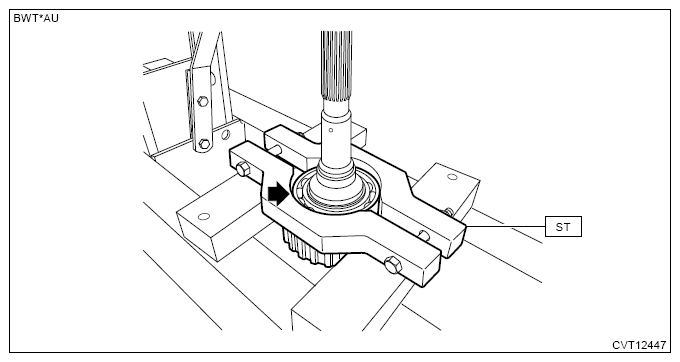

  1. Remove the ball bearing using the ST and a press.
    CAUTION: Be careful not to drop the rear drive shaft.

    Preparation tool:

    ST: REMOVER (498077600)

G13951194Courtesy of SUBARU OF AMERICA, INC.
