Electric Fluid Pump: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: The electric oil pump cannot be disassembled.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Drain the CVTF. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CVTF>REPLACEMENT .

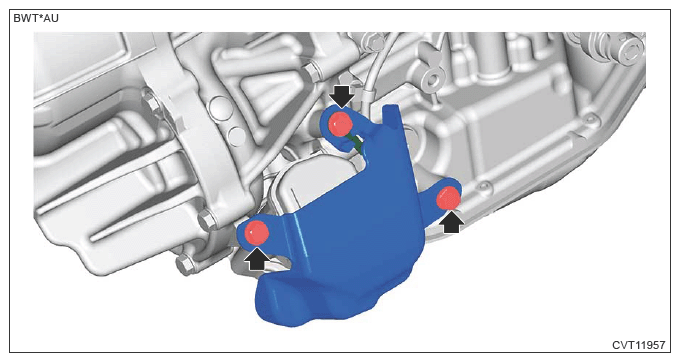

  3. Disconnect the ground terminal, and remove the electric oil pump cover.
    G13951080Courtesy of SUBARU OF AMERICA, INC.

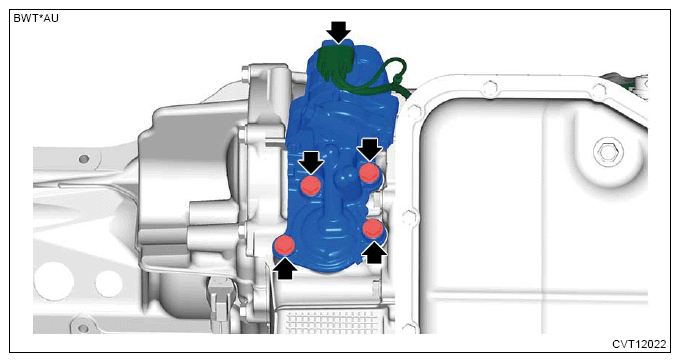

  4. Disconnect the connector and remove the electric oil pump.
    NOTE: Prepare the container for draining of engine oil.
    G13951081Courtesy of SUBARU OF AMERICA, INC.

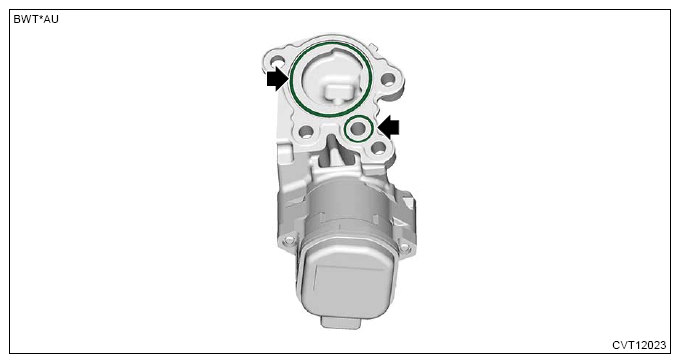

  5. Remove the O-rings.
    G13951082Courtesy of SUBARU OF AMERICA, INC.

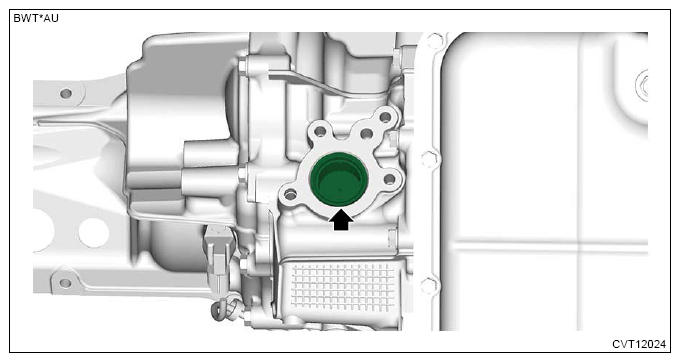

  6. Remove the CVTF filter.
    NOTE: Perform this procedure only when required.
G13951083Courtesy of SUBARU OF AMERICA, INC.
