Exhaust Gas RECIRCULATION Control Circuit Range/Performance
WARNING: This page is about a different variant/trim than selected.

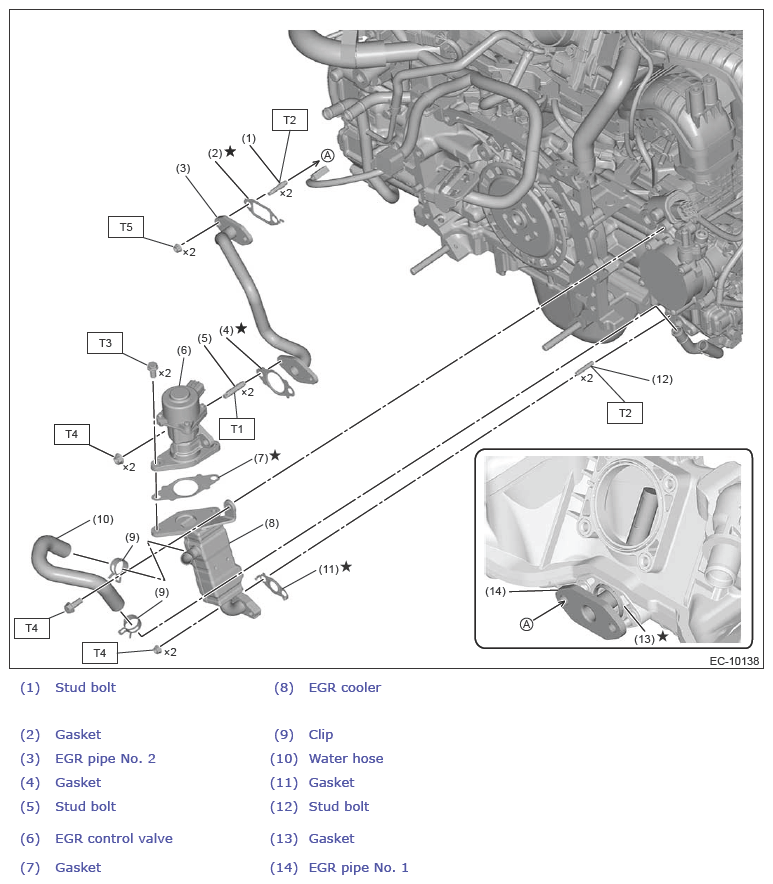

Tightening torque: N.m (kgf-m, ft-lb)
T1: 5 (0.5, 3.7)
T2: 6.4 (0.7, 4.7)
T3: 19 (1.9, 14.0)
T4: Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DOTC)>EGR COOLER>INSTALLATION .
T5: Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DOTC)>EGR PIPE>INSTALLATION .
