EGR Control Valve: Installation

WARNING: This page is about a different variant/trim than selected.

Set a new gasket.

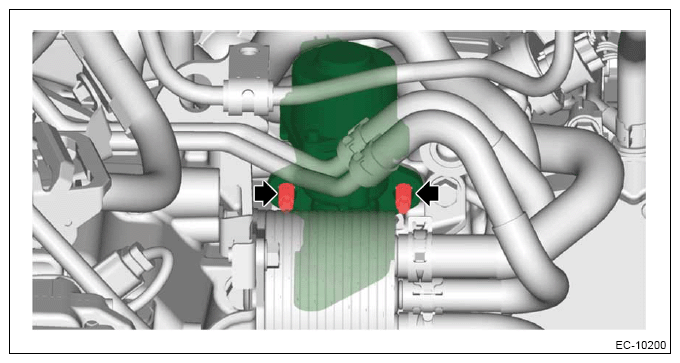

Set the EGR control valve, and install the stud bolts using TORX^® socket E8.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

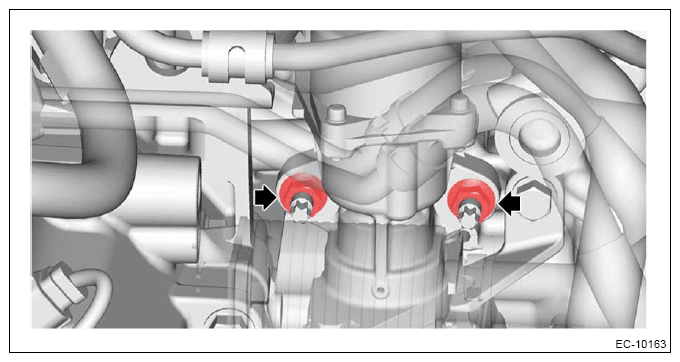

Temporarily tighten the nuts securing the EGR control valve.

Courtesy of SUBARU OF AMERICA, INC.
Install the bolts securing the EGR control valve to the EGR cooler.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

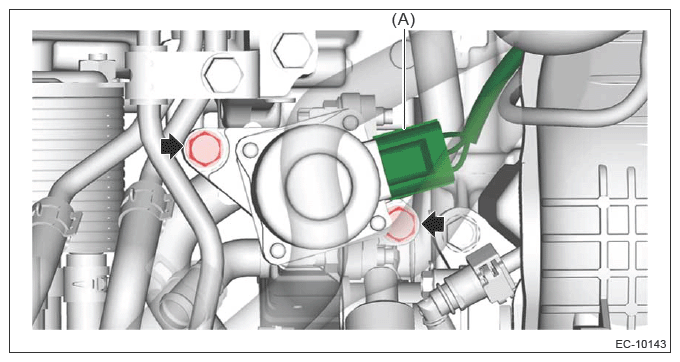

Connect the connector (A).

Courtesy of SUBARU OF AMERICA, INC.

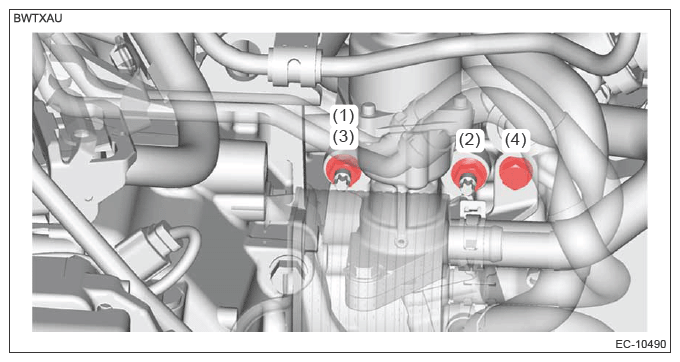

Tighten the nuts securing the EGR control valve and the bolts securing the EGR cooler in the numerical order shown in the figure.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Fig 1: EGR Control Valve Nuts And EGR Cooler Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
