Rocker Cover RH

WARNING: This page is about a different variant/trim than selected.
NOTE: When replacing a single part, perform the work with the engine assembly installed to body.
  1. When working on the vehicle
    NOTE: When working on the vehicle, perform the following steps also.

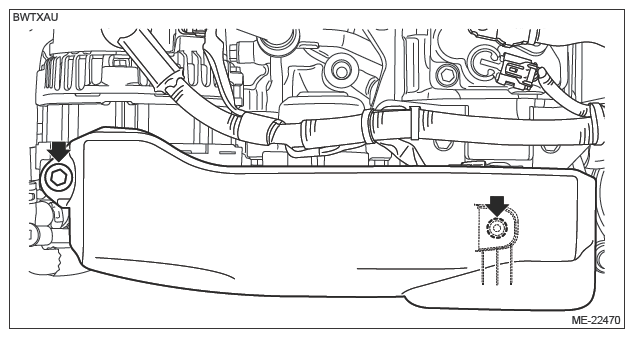

    1. Remove the V-belt covers.
      G13948955Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the air cleaner case. Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR CLEANER CASE>REMOVAL .
  2. Remove the #1 ignition coil and the #3 ignition coil. Ref. to IGNITION (H4DOTC)>IGNITION COIL>REMOVAL>RH SIDE .

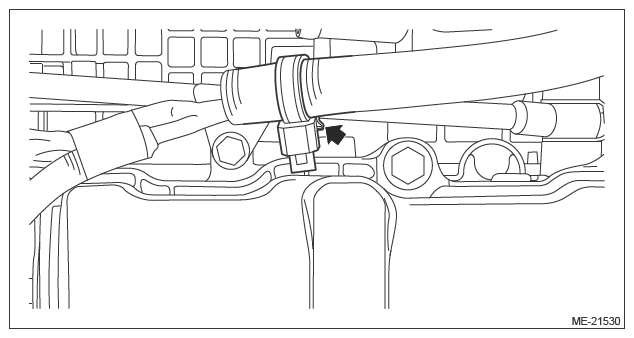

  3. Remove the clip from the oil pipe (vacuum pump).
    G13948956Courtesy of SUBARU OF AMERICA, INC.

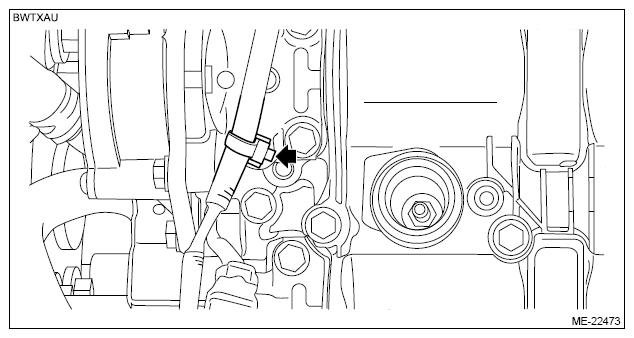

  4. Remove the clip holding the engine wiring harness from cam carrier RH.
    G13948957Courtesy of SUBARU OF AMERICA, INC.

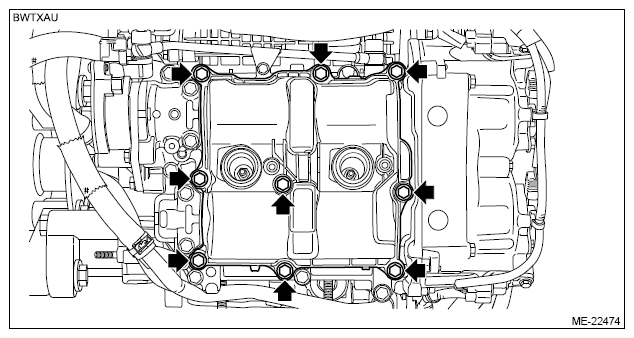

  5. Remove the rocker cover RH.
    G13948958Courtesy of SUBARU OF AMERICA, INC.

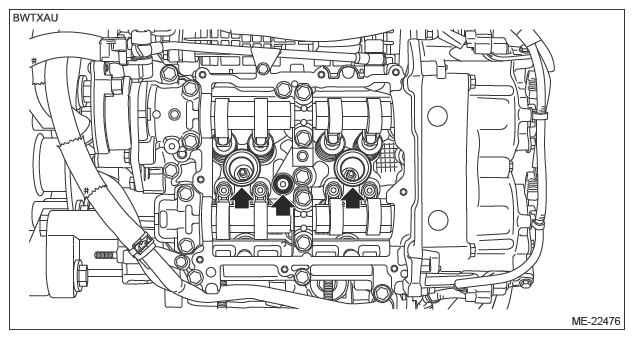

  6. Remove the rocker cover gasket (ring type) and the spark plug pipe gasket, and remove the liquid gasket.

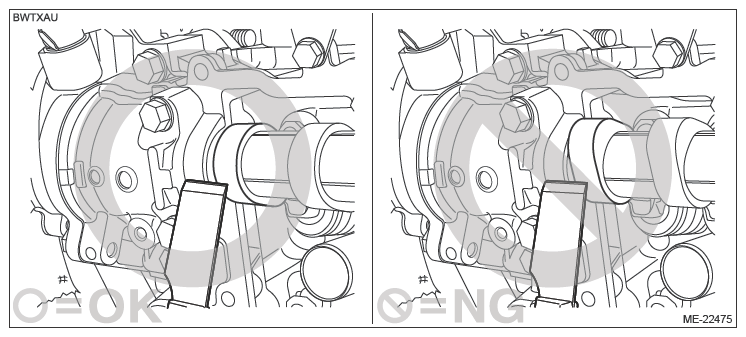

    CAUTION:
    • When removing the liquid gasket from engine unit using scraper, use special care not to damage the cam lobe of camshaft RH.
    • If the cam lobe of camshaft RH interferes, turn the crankshaft to the position where the scraper does not touch.
    G13948959Courtesy of SUBARU OF AMERICA, INC.
    G13948960Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the rocker cover gasket RH from the rocker cover RH, and remove the liquid gasket.
