Section 1 (Engine Starting System & Charging System (2.4L))
>>
Charging System
>>
Wiring Diagram

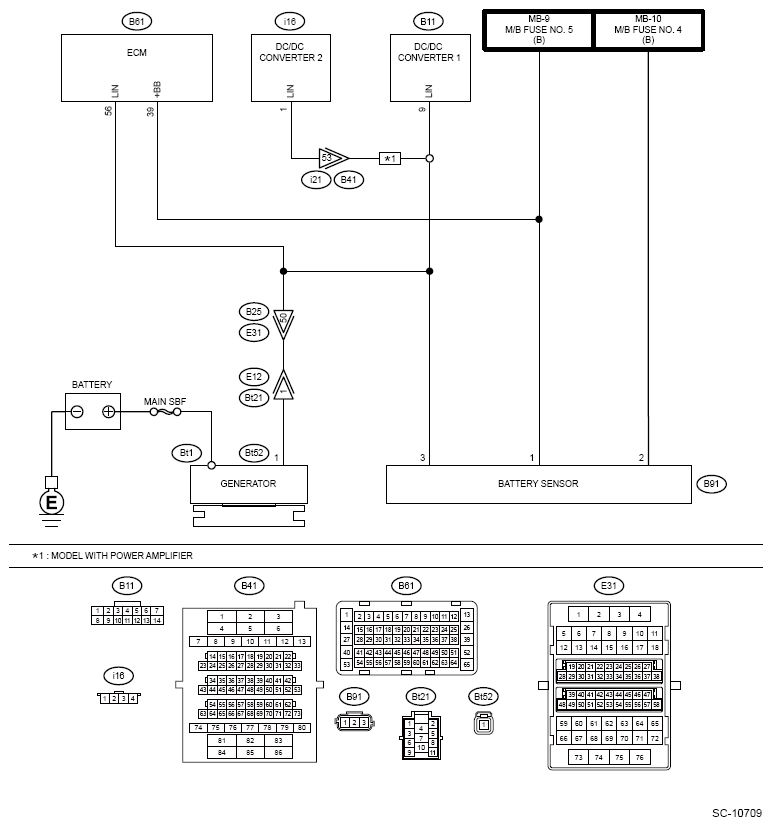

Charging System: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of SUBARU OF AMERICA, INC.
