Auto Start Stop Dc/Dc Converter 1

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the camera control assembly. (Model with front camera) Ref. to ENTERTAINMENT AND MONITORING>CONTROL UNIT>REMOVAL>CAMERA CONTROL MODULE .

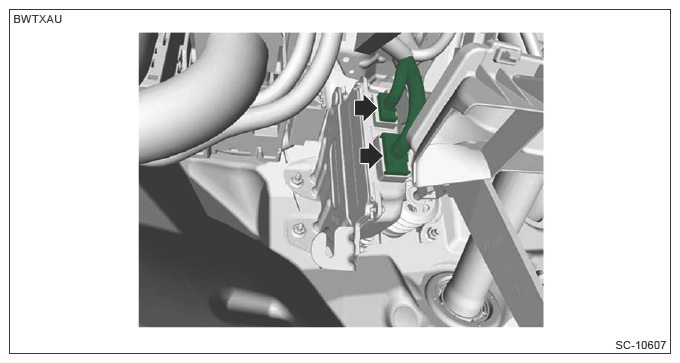

  3. Disconnect the connector from the Auto Start Stop DC/DC converter 1.
    G13949500Courtesy of SUBARU OF AMERICA, INC.

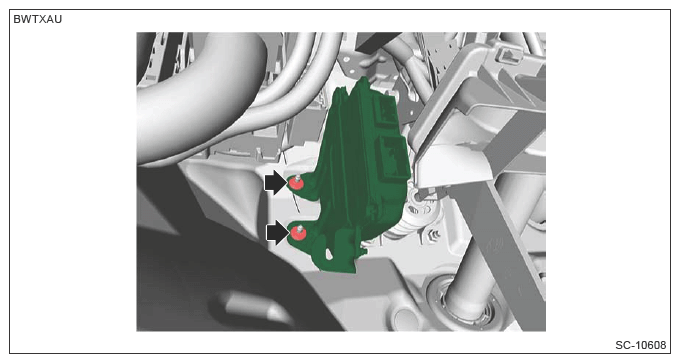

  4. Remove the Auto Start Stop DC/DC converter 1 from the vehicle.
    G13949501Courtesy of SUBARU OF AMERICA, INC.

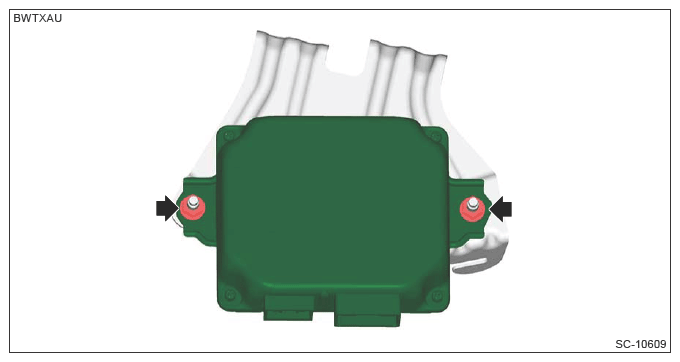

  5. Remove the Auto Start Stop DC/DC converter 1 from the bracket.
    G13949502Courtesy of SUBARU OF AMERICA, INC.
