Seat Position Memory Switch (Models With Seat Position Memory)

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Remove the trim panel front door on the driver's seat side. Ref. to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>FRONT DOOR .

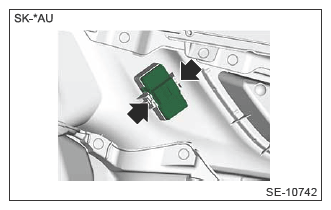

  3. Release the claws, and remove the seat position memory switch assembly.
    G13226827Courtesy of SUBARU OF AMERICA, INC.
