Rear Seat

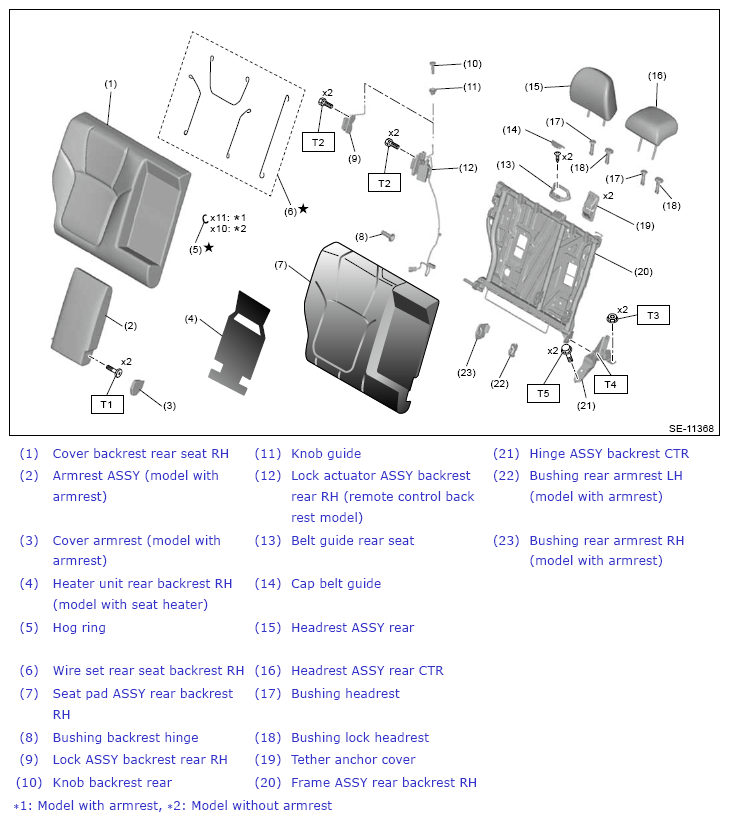

Fig 1: Exploded View Of Rear Seat Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 14.6 (1.5, 10.8)

T2: 18 (1.8, 13.3)

T3: 24.5 (2.5, 18.1)

T4: 29 (3.0, 21.4)

T4: 33 (3.4, 24.3)

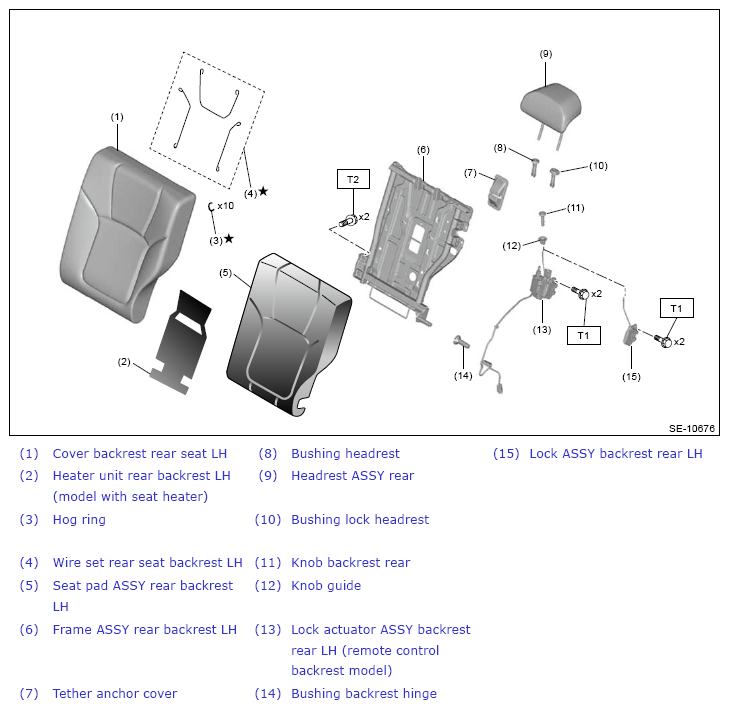

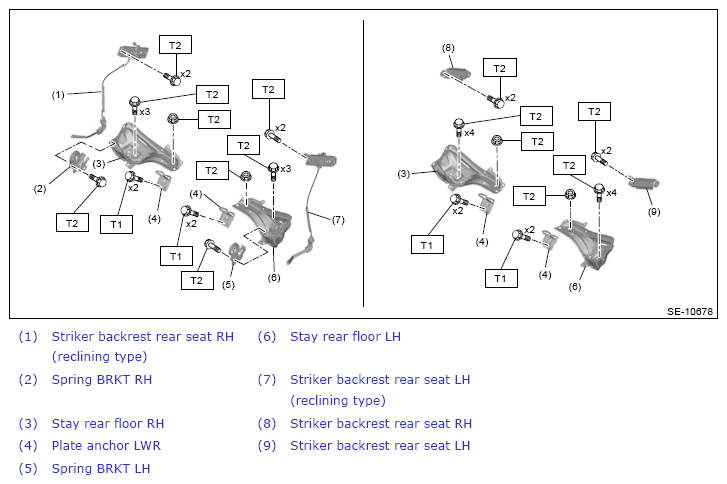

Fig 2: Exploded View Of Rear Seat Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: 33 (3.4, 24.3)

Courtesy of SUBARU OF AMERICA, INC.

NOTE: The seating sensor mat is integrated into the pad and frame assembly rear cushion.

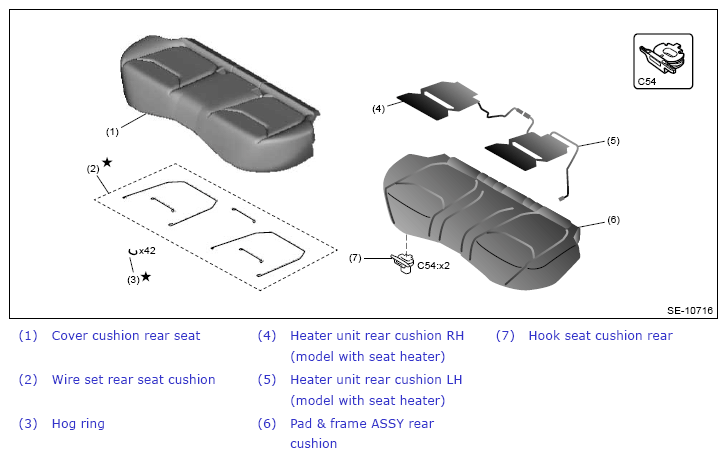

Fig 3: Exploded View Of Rear Seat Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 33 (3.4, 24.3)
