Rear Gate Opener Button: Removal

NOTE: The switch opener rear gate of the model with keyless access with push button start is integrated with the rear lock button. For operation procedures, refer to "Rear Lock Button". Ref. to SECURITY AND LOCKS>Rear Lock Button>REMOVAL .
  1. Disconnect the ground terminal from battery sensor. Ref. to GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Remove the garnish assembly rear gate. Ref. to EXTERIOR/INTERIOR TRIM>REAR GATE GARNISH>REMOVAL .
  3. Remove the garnish assembly rear gate LWR. Ref. to EXTERIOR/INTERIOR TRIM>REAR GATE GARNISH>DISASSEMBLY .
  4. Remove the switch opener rear gate.
    CAUTION: When using a flat tip screwdriver, apply protective tape or cloth and be careful not to cause damage.

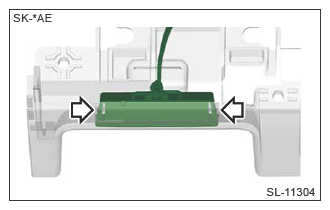

    1. Remove the switch opener rear gate by pressing the lock portions on both sides.
G13226889Courtesy of SUBARU OF AMERICA, INC.
