Except For Model With Power Amplifier

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .

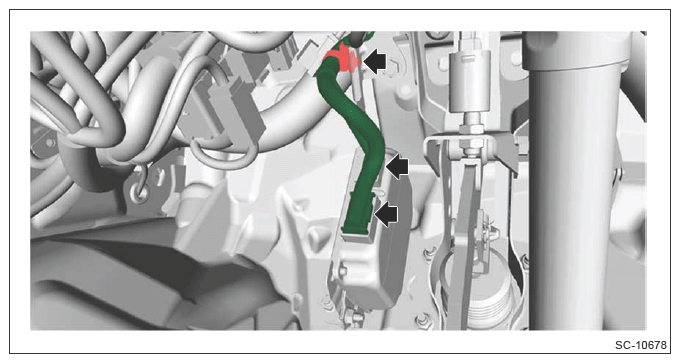

  2. Disconnect the connector from the Auto Start Stop DC/DC converter 1 and remove the clip.
    G13601364Courtesy of SUBARU OF AMERICA, INC.

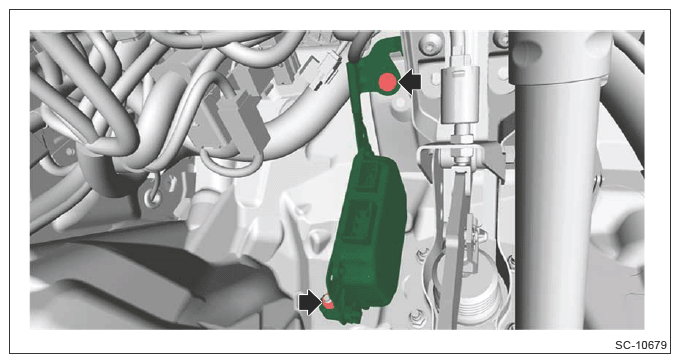

  3. Remove the Auto Start Stop DC/DC converter 1 from the vehicle.
    G13601365Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the Auto Start Stop DC/DC converter 1 from the bracket.
    G13601366Courtesy of SUBARU OF AMERICA, INC.
