Electrical Specification

Courtesy of SUBARU OF AMERICA, INC.

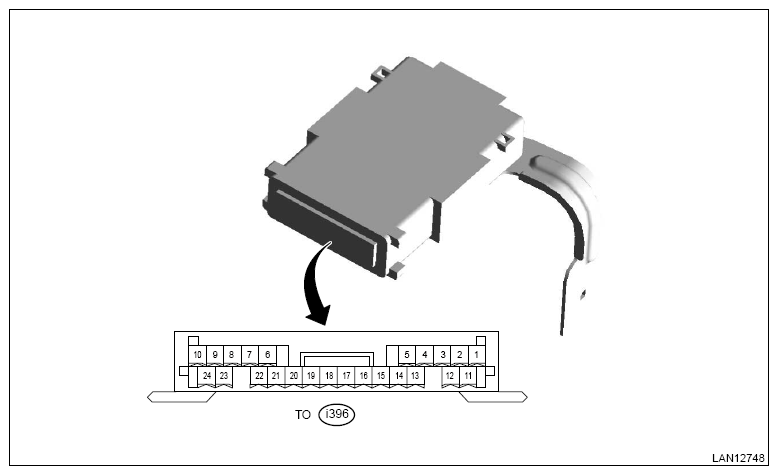

Terminal No.	Item	Measuring condition	Standard
(i366) No. 1 ←→ Chassis ground	Battery power supply	Always	8 - 16 V
(i366) No. 2 ←→ Chassis ground	ACC power supply	ACC ON	8 - 16 V
(i366) No. 3	-	-	-
(i366) No. 4	-	-	-
(i366) No. 5	DIAG CAN- L	Digital signal; can not be measured	-
(i366) No. 6	-	-	-
(i366) No. 7	MAIN CAN - L	Digital signal; can not be measured	-
(i366) No. 8	C CAN-L	Digital signal; can not be measured	-
(i366) No. 9	-	-	-
(i366) No. 10 ←→ Chassis ground	GND	Always	1 Ω or less
(i366) No. 11 ←→ Chassis ground	IGN power supply	IGN ON	8 - 16 V
(i366) No. 12	-	-	-
(i366) No. 13	-	-	-
(i366) No. 14	DAIG CAN-H	Digital signal; can not be measured	-
(i366) No. 15	BODY CAN-H	Digital signal; can not be measured	-
(i366) No. 16	BODY CAN-L	Digital signal; can not be measured	-
(i366) No. 17	P CAN-L	Digital signal; can not be measured	-
(i366) No. 18	P CAN-H	Digital signal; can not be measured	-
(i366) No. 19	-	-	-
(i366) No. 20	-	-	-
(i366) No. 21	-	-	-
(i366) No. 22	MAIN CAN-H	Digital signal; can not be measured	-
(i366) No. 23	C CAN-H	Digital signal; can not be measured	-
(i366) No. 24	-	-	-
