Home >> Subaru >> 2021 >> Ascent Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> CVT Transaxle System >> General Description >> Components With Torque Specifications >> Forward Clutch And Reduction Driven Gear

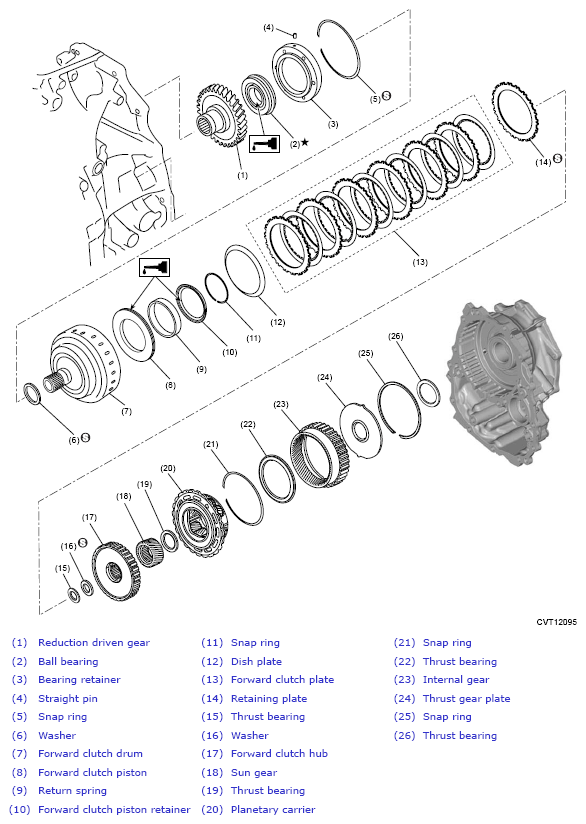

Forward Clutch And Reduction Driven Gear

G13863700

Courtesy of SUBARU OF AMERICA, INC.
