Seat Memory Switch

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel front door LH. Ref. to EXTERIOR/INTERIOR TRIM>Door Trim>REMOVAL>FRONT DOOR .
  3. Remove the seat memory switch assembly.
    1. Disconnect the connector.

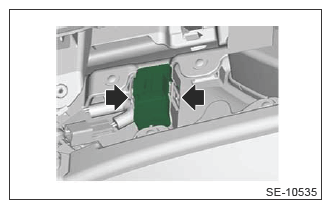

    2. Release the claws, and remove the seat memory switch assembly.
      G13201378Courtesy of SUBARU OF AMERICA, INC.
