Harness Layout

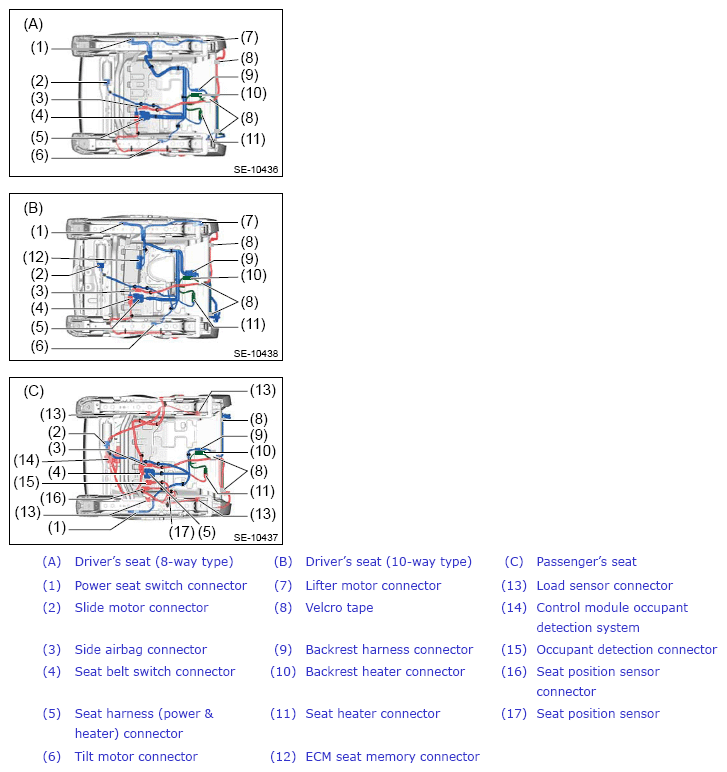

Power seats (type without ventilation)

Courtesy of SUBARU OF AMERICA, INC.

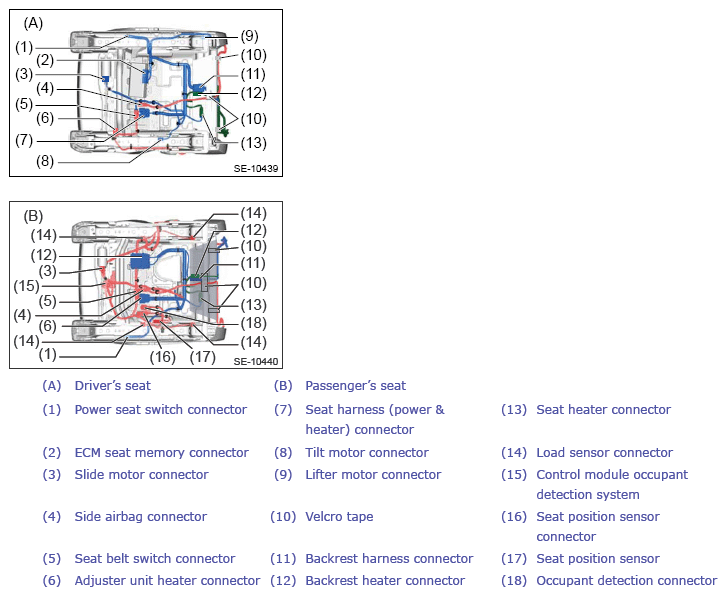

Power seats (type with ventilation)

Courtesy of SUBARU OF AMERICA, INC.
