Torque Converter & Converter Case

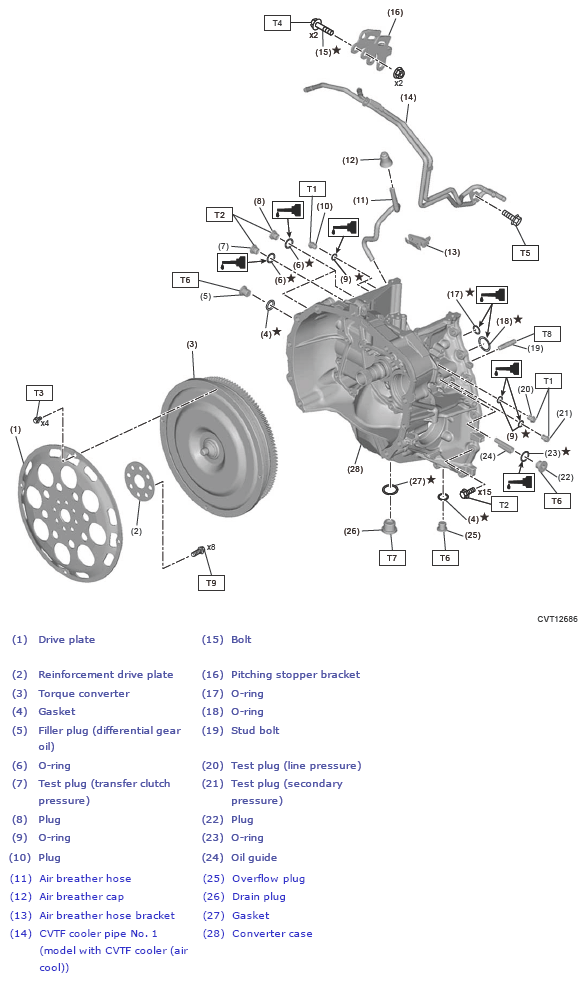

Fig 1: Torque Converter And Converter Case Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 13 (1.3, 9.6)

T2: 22 (2.2, 16.2)

T3: 25 (2.5, 18.4)

T4: 32 (3.3, 23.6)

T5: 35 (3.6, 25.8)

T6: 50 (5.1, 36.9)

T7: 70 (7.1, 51.6)

T8: Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Converter Case>ASSEMBLY .

T9: Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Drive Plate>INSTALLATION .
