Intermediate Case: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Install the reverse brake. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Reverse Brake>ASSEMBLY .
  2. Install the plugs with new O-rings.
    NOTE: Apply CVTF to the O-rings.

    Tightening torque:

    25 N.m (2.5 kgf-m, 18.4 ft-lb)

    Fig 1: Plugs (With Torque Specification)
    G13622148Courtesy of SUBARU OF AMERICA, INC.
  3. Temporarily install the filler plug.
    NOTE: Replace the filler plug gasket with a new part after adjusting the amount of CVTF.
    G13622149Courtesy of SUBARU OF AMERICA, INC.

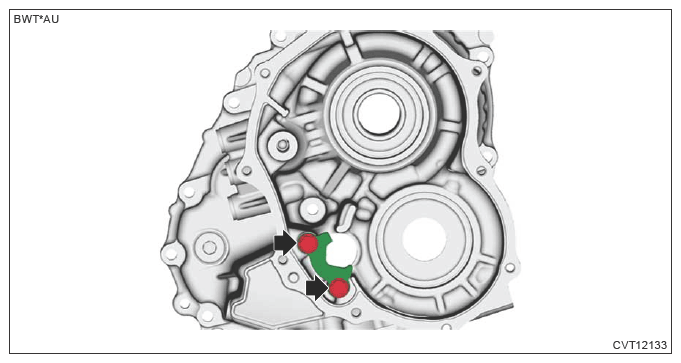

  4. Install the parking support.

    Tightening torque:

    25 N.m (2.5 kgf-m, 18.4 ft-lb)

    G13622146Courtesy of SUBARU OF AMERICA, INC.
