Auto Start Stop DC/DC CONVERTER 2

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Refer to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the under cover assembly passenger. Refer to EXTERIOR/INTERIOR TRIM>Glove Box>REMOVAL>BACK PANEL .

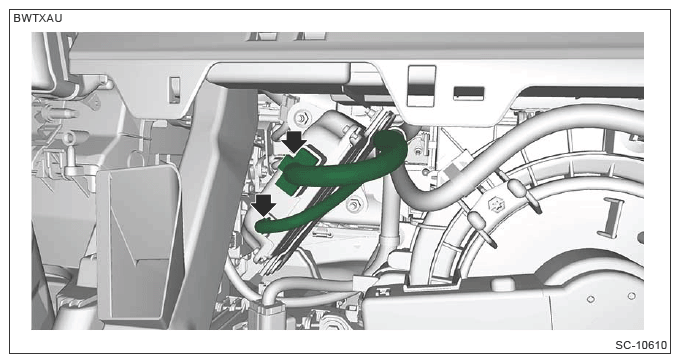

  3. Disconnect the connector from the Auto Start Stop DC/DC converter 2.
    G13619499Courtesy of SUBARU OF AMERICA, INC.

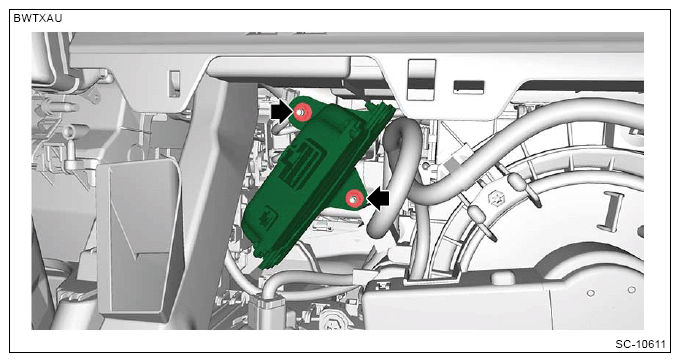

  4. Remove the Auto Start Stop DC/DC converter 2 from the vehicle.
    G13619500Courtesy of SUBARU OF AMERICA, INC.

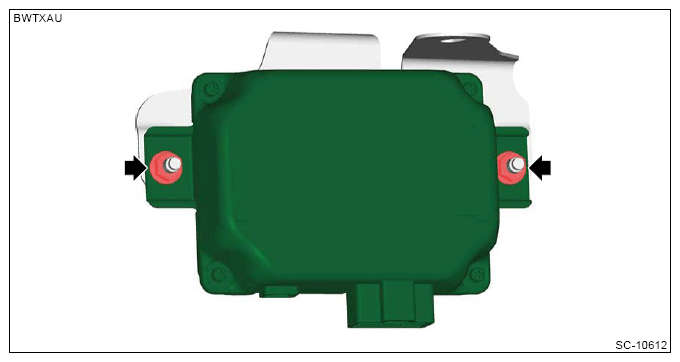

  5. Remove the Auto Start Stop DC/DC converter 2 from the bracket.
G13619501Courtesy of SUBARU OF AMERICA, INC.
