Section 11 (Emission Control Systems (Aux. Emission Control Devices) (2.4L))
>>
General Description
>>
Components With Torque Specifications
>>
PCV System
PCV System
WARNING:
This page is about a different variant/trim than selected.

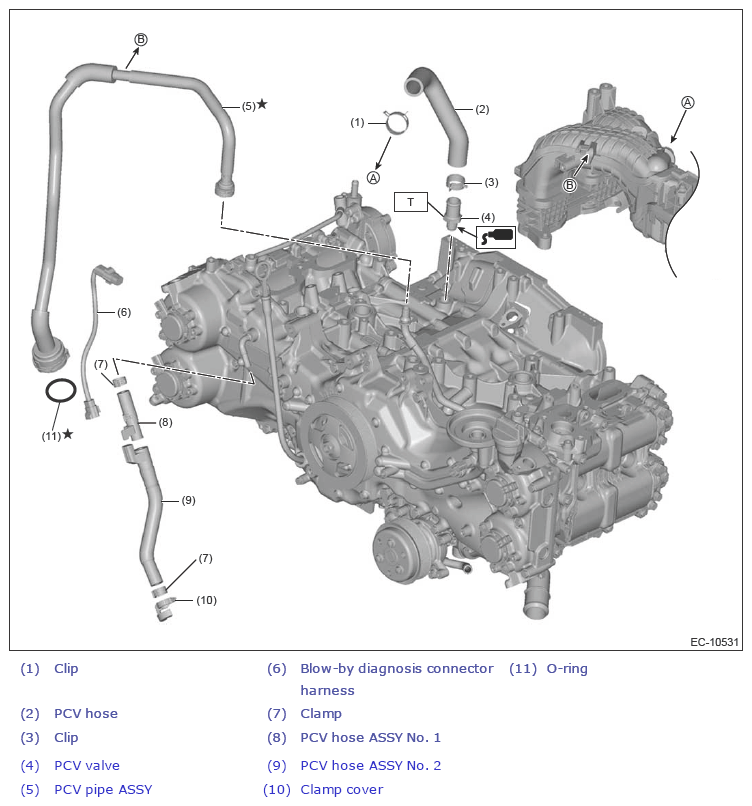

Fig 1: PCV System Components (With Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 25 (2.5, 18.4)
Courtesy of SUBARU OF AMERICA, INC.
