Exhaust Gas RECIRCULATION Control Circuit Range/Performance

WARNING: This page is about a different variant/trim than selected.

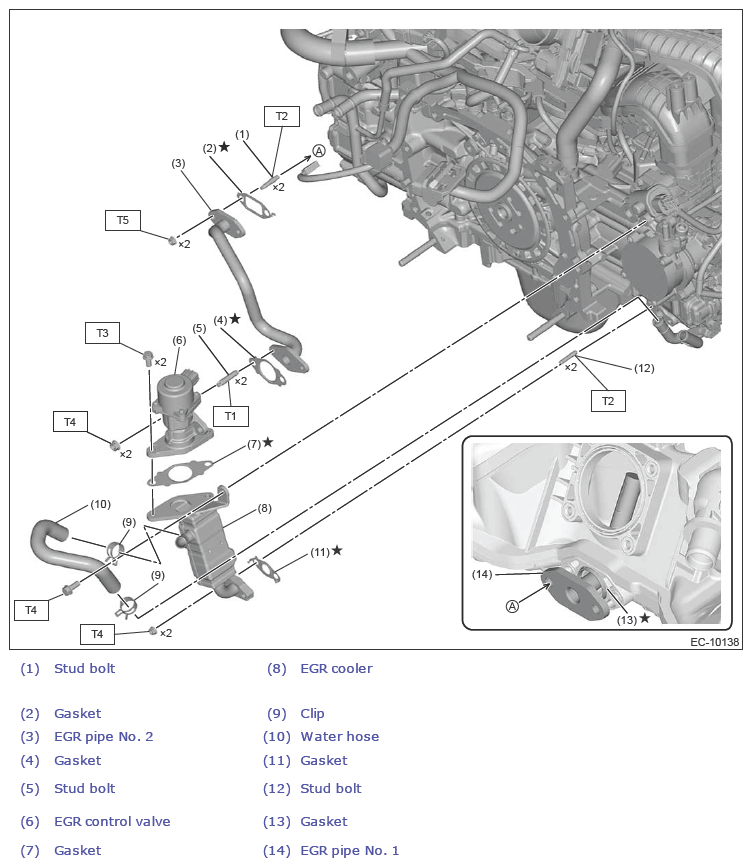

Fig 1: Exhaust Gas Recirculation Control Components (With Torque Specification)
G13619846Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5 (0.5, 3.7)

T2: 6.4 (0.7, 4.7)

T3: 19 (1.9, 14.0)

T4:  Refer to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DOTC)>EGR Cooler>INSTALLATION .

T5:  Refer to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DOTC)>EGR Pipe>INSTALLATION .
