Home >> Subaru >> 2020 >> Outback Base >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine Mechanical System (2.5L) >> General Description >> Components With Torque Specifications >> Valve Assembly

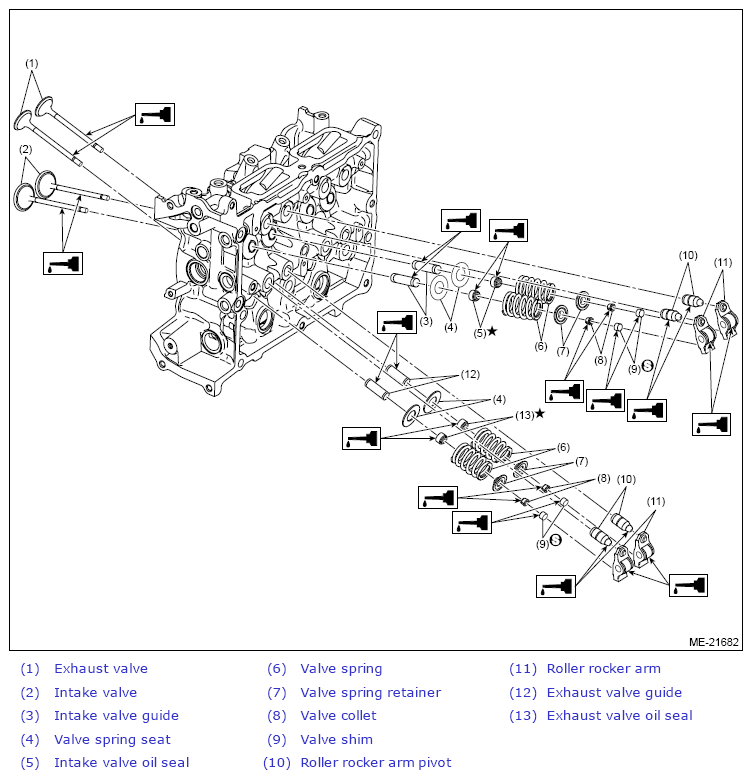

Valve Assembly

G13618777Courtesy of SUBARU OF AMERICA, INC.
