Rear Differential Mounting System

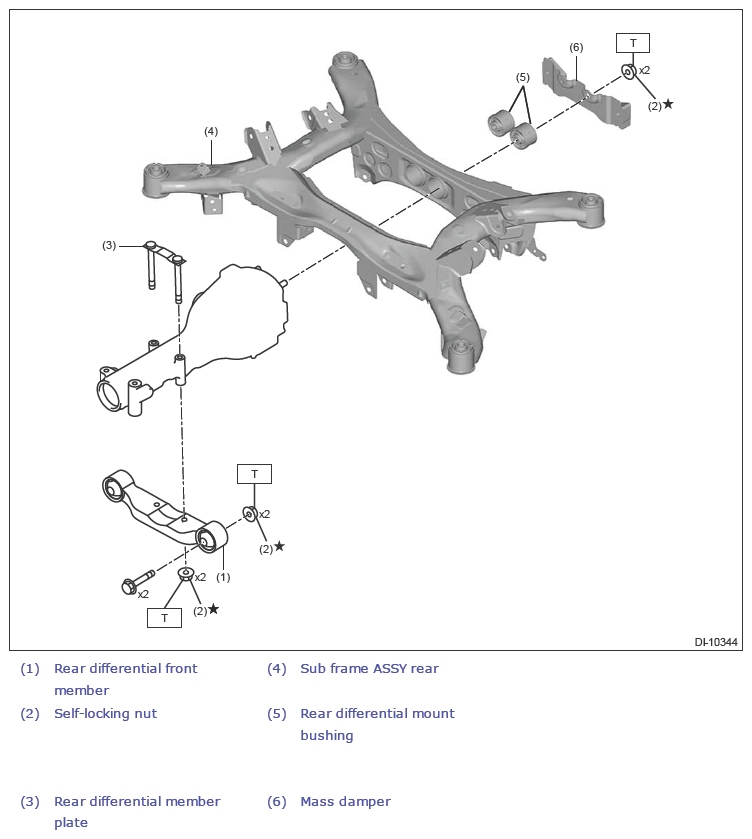

Fig 1: Rear Differential Mounting System Components (With Torque Specification)
G13620935Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: Refer to DIFFERENTIALS>Rear Differential (VA-type)>INSTALLATION .
