DTC P2271: O2 Sensor Signal Biased/Stuck Rich Bank 1 Sensor 2: Notes

DTC detecting condition:

Detected when two consecutive driving cycles with fault occur.

Wiring diagram:

Engine Electrical System. Ref. to WIRING SYSTEM (IMPREZA MODEL)>ENGINE ELECTRICAL SYSTEM>WIRING DIAGRAM . Ref. to WIRING SYSTEM (CROSSTREK MODEL (EXCEPT FOR HEV))>ENGINE ELECTRICAL SYSTEM>WIRING DIAGRAM .

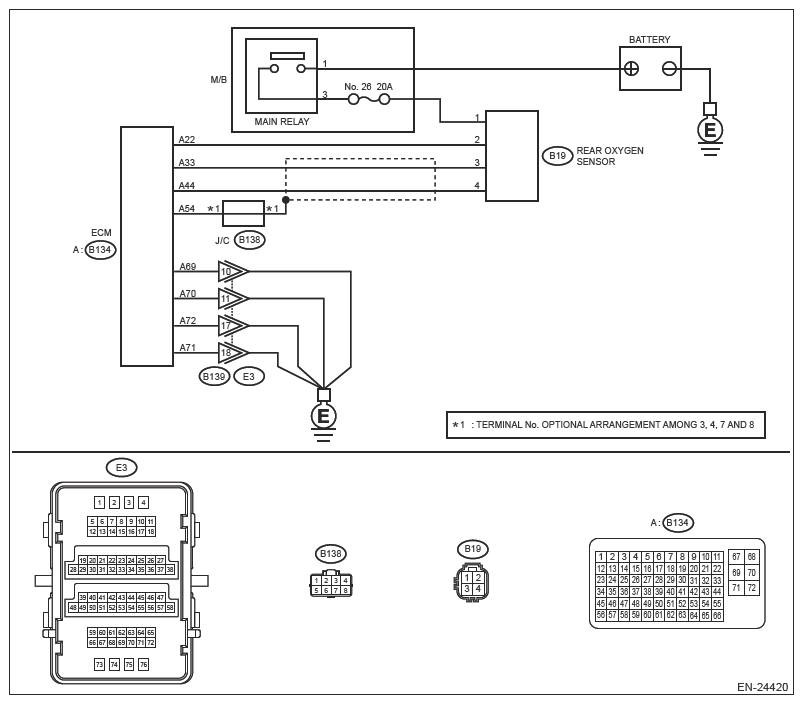

IMPREZA MODEL

Courtesy of SUBARU OF AMERICA, INC.

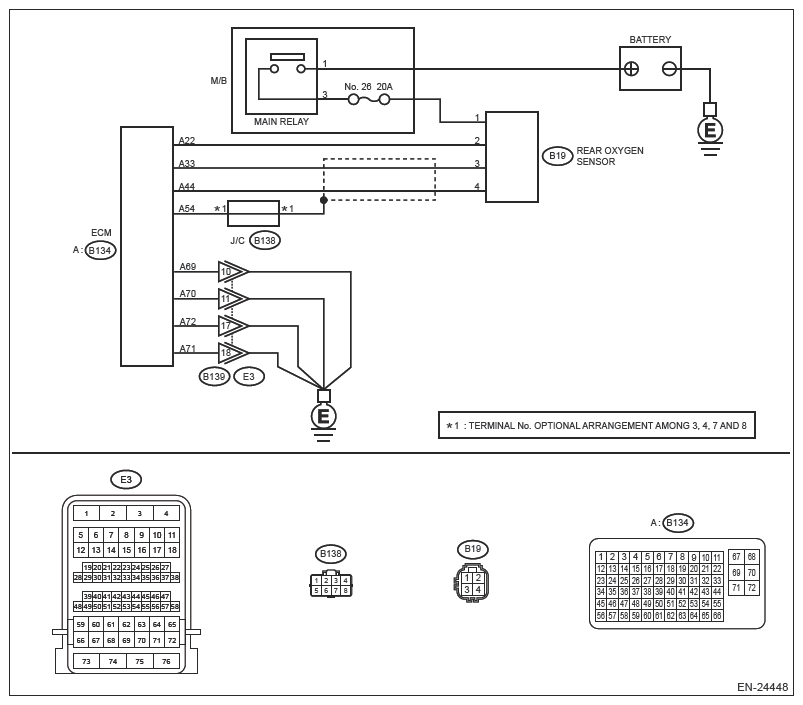

CROSSTREK MODEL

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Use the check board when measuring the ECM terminal voltage and resistance. Ref. to ENGINE (DIAGNOSTICS) (H4DO (EXCEPT FOR HEV))>GENERAL DESCRIPTION>PREPARATION TOOL>HOW TO USE CHECK BOARD .

NOTE: After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DO (EXCEPT FOR HEV))>BASIC DIAGNOSTIC PROCEDURE>PROCEDURE .

Courtesy of SUBARU OF AMERICA, INC.

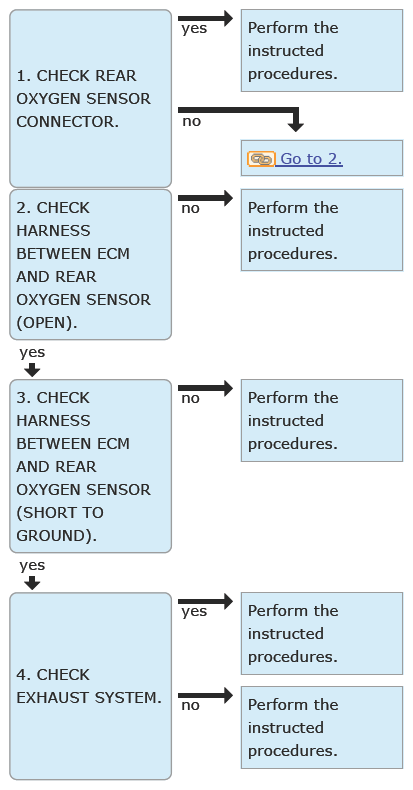

CHECK REAR OXYGEN SENSOR CONNECTOR .
Check the rear oxygen sensor connector.

Has water entered the connector?

Yes : Completely remove any water inside.

No : Go to 2.
CHECK HARNESS BETWEEN ECM AND REAR OXYGEN SENSOR (OPEN) .
1. Turn the ignition switch to OFF.
2. Disconnect the connector from ECM.
3. Disconnect the connector from the rear oxygen sensor.
4. Measure the resistance of harness between ECM connector and rear oxygen sensor connector.
  Connector & terminal

  (B134) No. 44 - (B19) No. 4:

  (B134) No. 33 - (B19) No. 3:

  Is the resistance less than 1 Ω?

  Yes : Go to 3.

  No : Repair the open circuit of harness between ECM connector and rear oxygen sensor connector.
CHECK HARNESS BETWEEN ECM AND REAR OXYGEN SENSOR (SHORT TO GROUND) .
Measure the resistance between the ECM connector and engine ground.

Connector & terminal

(B134) No. 33 - Chassis ground:

Is the resistance 1 MΩ or more?

Yes : Go to 4.

No : Repair the short circuit to ground in harness between ECM connector and rear oxygen sensor connector.
CHECK EXHAUST SYSTEM .
Check exhaust system parts.
NOTE:
Check the following items.
- Looseness and improper fitting of exhaust system parts
- Damage (crack, hole etc.) of parts
- Damage (crack, hole etc.) between front oxygen (A/F) sensor and rear oxygen sensor
Is there any fault in exhaust system?

Yes : Repair or replace faulty parts.

No : Replace the rear oxygen sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (EXCEPT FOR HEV))>REAR OXYGEN SENSOR .
