DTC P2004: TGV Control Stuck Open Bank 1: Notes

-
DTC detecting condition:

Immediately at fault recognition

NOTE: After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DO (EXCEPT FOR HEV))>BASIC DIAGNOSTIC PROCEDURE>PROCEDURE .

Courtesy of SUBARU OF AMERICA, INC.

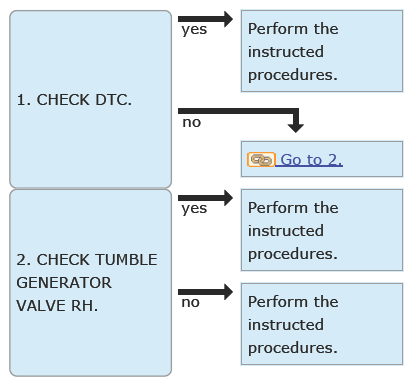

CHECK DTC .
Using the Subaru Select Monitor or a general scan tool, read the DTC of [Engine]. Ref. to COMMON (DIAG)>DIAGNOSTIC TROUBLE CODE (DTC) .

Is DTC other than P2004 displayed? (Current malfunction)

Yes : Check the appropriate DTC using the "Diagnostic Trouble Code (DTC)". Ref. to ENGINE (DIAGNOSTICS) (H4DO (EXCEPT FOR HEV))>DIAGNOSTIC TROUBLE CODE (DTC) .

No : Go to 2.
CHECK TUMBLE GENERATOR VALVE RH .
1. Remove the tumble generator valve assembly RH.
2. Check the tumble generator valve.
  Is there any dirt or clogging with foreign objects in the tumble generator valve?

  Yes : Clean the tumble generator valve.

  No : Replace the tumble generator valve actuator RH. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO (EXCEPT FOR HEV))>TUMBLE GENERATOR VALVE ACTUATOR .

  NOTE: The tumble generator valve actuator cannot be disassembled.
