Oil Pump

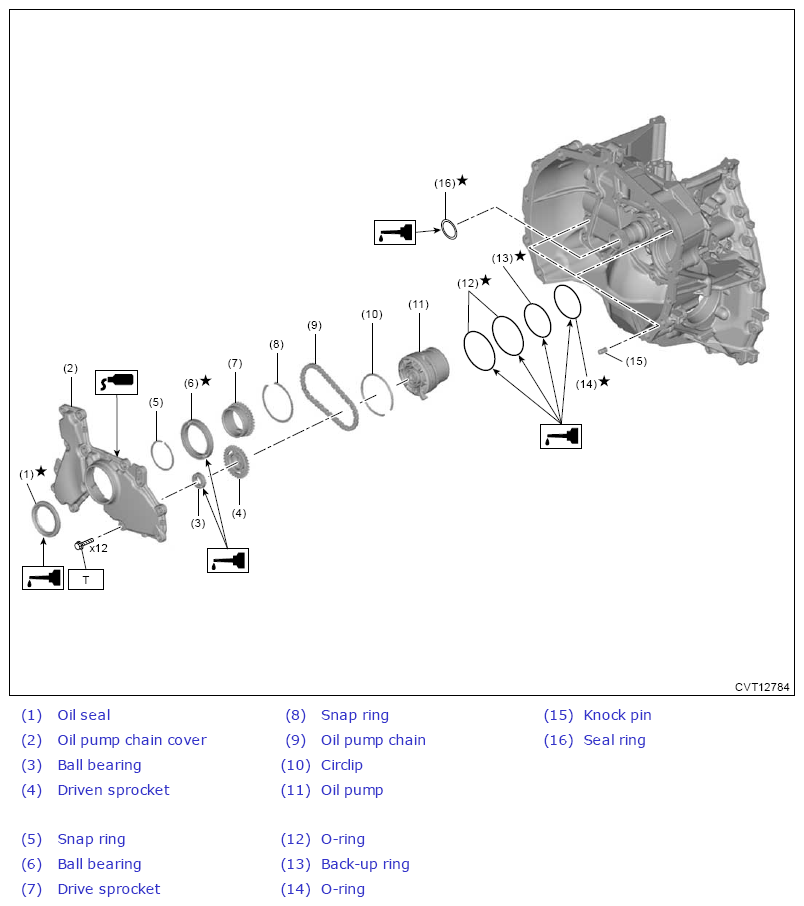

Fig 1: Oil Pump Components (With Torque Specifications)
G13603027Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 21 (2.1, 15.5)
