Section 2 (CVT Transaxle)
>>
General Description
>>
Components With Torque Specifications
>>

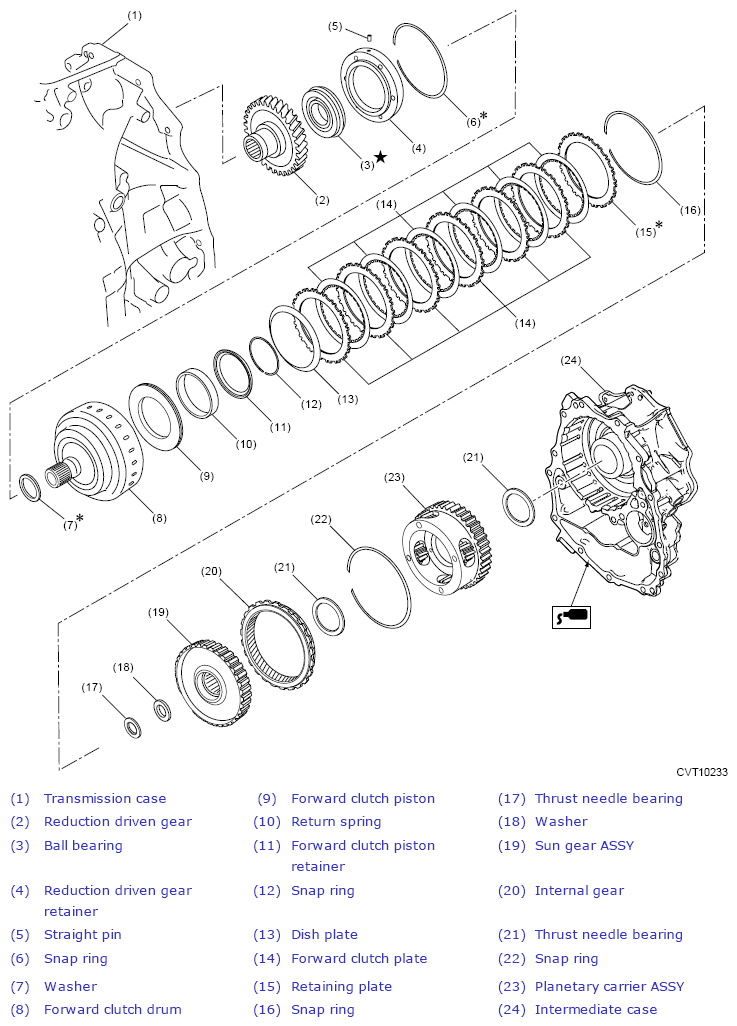

Forward Clutch Assembly And Reduction Driven Gear
Forward Clutch Assembly And Reduction Driven Gear
WARNING:
This page is about a different variant/trim than selected.
Courtesy of SUBARU OF AMERICA, INC.
