Washer Tank

• Models without EyeSight

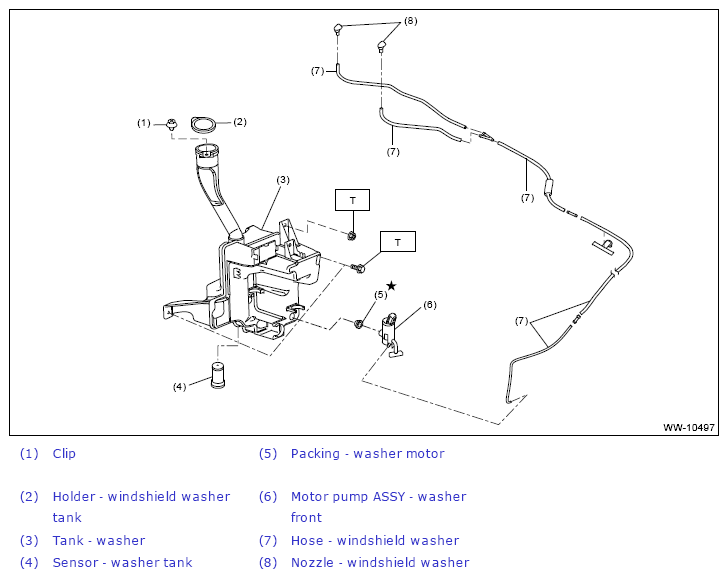

  Fig 1: Washer Tank Components (With Torque Specifications) - Models Without EyeSight

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T: 6 (0.6, 4.4)

• Models with EyeSight

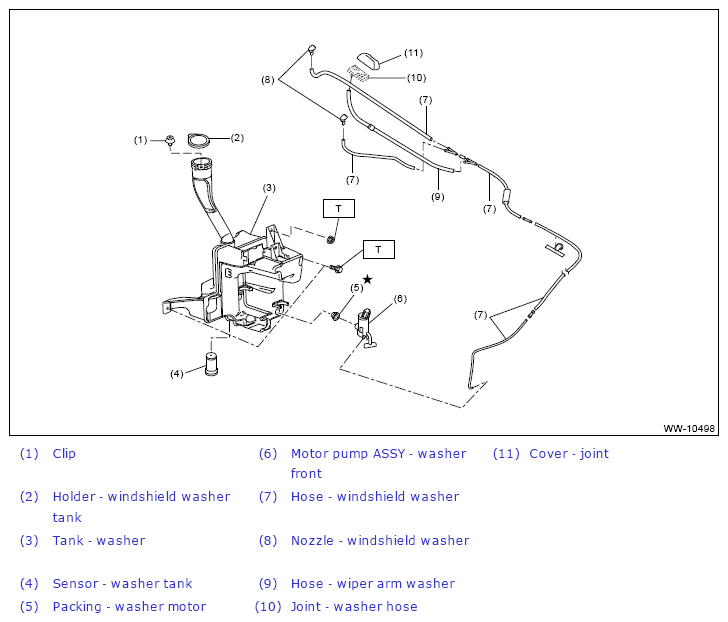

Fig 2: Washer Tank Components (With Torque Specifications) - Models With EyeSight

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 6 (0.6, 4.4)
