Data Communication Module (DCM) Bypass Box (15-318-24R)

DATA COMMUNICATION MODULE (DCM) BYPASS BOX

TECHNICAL SERVICE BULLETIN

APPLICABILITY

2019MY Legacy & Outback

2019-21MY WRX/STI

INTRODUCTION

This bulletin announces the Warranty Extension for the Data Communication Module (DCM) up to 8 years (96 months) or 150,000 miles (whichever comes first) to address a dead battery resulting from excessive dark current draw caused by the DCM, due to internal memory corruption. Effective from the date of customer notification, ALL affected vehicles, regardless of mileage or Warranty Start Date will be covered for a period of one (1) year.

The DCM Bypass Box was designed to be used as an alternative replacement part for DCM in vehicles with no active STARLINK subscription in place of the DCM until sufficient replacement DCM inventory was available. As of 02/04/25, replacement DCM inventory is sufficient; therefore, they are to be replaced for customers experiencing a qualifying concern. The bypass box installation will no longer be a repair measure which would be covered under the terms of this Warranty Extension.

• This extension will cover the replacement of the DCM for vehicles with an "Active" and "Unsubscribed" STARLINK subscription if the DCM is confirmed to be the cause of the excessive dark current draw.
• The extension will also cover the testing, recharging/replacement of the battery if the DCM is found to be the root cause of the excessive dark current draw. Battery test code is required for the claim entry.
• Previously, for "Unsubscribed" vehicles, without a STARLINK subscription, with a confirmed excessive dark current draw from the DCM, this extension covered the installation of a DCM bypass box due to low DCM inventory. DCM inventory has become sufficient and bypass box installation is not longer required.
• Customers who previously received the bypass box now have the option to request a replacement DCM. The new replacement DCM's are available and will replace the previously installed bypass box. The Warranty Extension will cover the removal of the bypass box and installation of a new DCM. This request would have been documented with a Subaru retailer at the time of the initial repair.

• All inspections and repairs must be completed prior to the expiration of this Warranty extension.
• Customers who have paid for DCM or DCM bypass box replacement prior to the release of this extension are eligible for reimbursement. Details of reimbursement procedure is provided in the customer letter which is added to the end of this bulletin.

PART INFORMATION

REMINDER:  Always order the most up-to-date replacement parts based on the specific VIN being repaired.

Model	Part Description	Part Number
LEGACY & OUTBACK	TELEMATICS UNIT	86229AL20A 86229AL21A
WRX	TELEMATICS UNIT	86229VA200 86229VA210

CONFIRMING SUBSCRIPTION STATUS USING SNET VEHICLE INQUIRY:

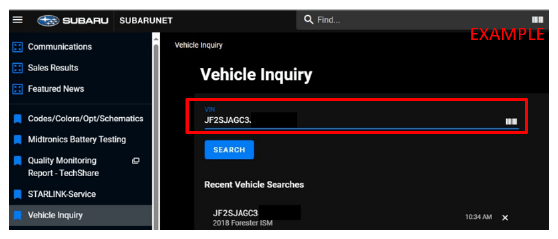

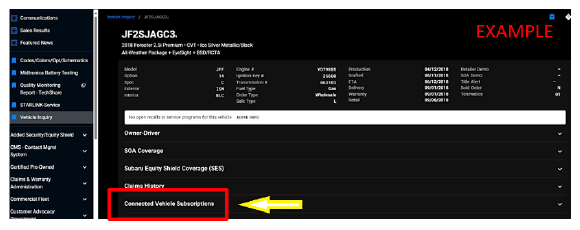

1. Enter the subject Vehicle Identification Number (VIN) into the VIN search box and click the search button.

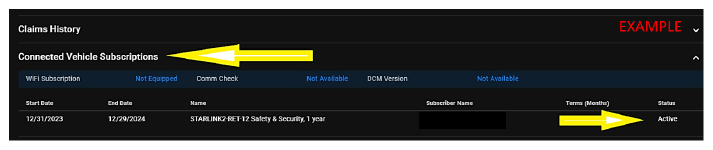

2. Select the Connected Vehicle Subscriptions drop down.
3. If the status reads "Active," the vehicle has an active STARLINK subscription and if the status reads "Inactive," the vehicle does not have an active STARLINK subscription.

   CONFIRMING SUBSCRIPTION STATUS USING SUBARU SELECT MONITOR:

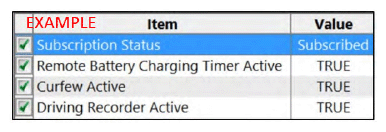

4. Connect the applicable Subaru Select Monitor (SSM) to the vehicle. Read the Subscription status of the DCM located in the "Work Support" menus. If the status reads "Subscribed," the vehicle has an active STARLINK subscription and if the status reads "Unsubscribed," the vehicle does not have a active STARLINK subscription.

LEGACY & OUTBACK DCM REMOVAL PROCEDURE/INFORMATION

STEP 1:  Refer to the applicable Service Manual and review: General Description > Repair Contents > Action required before & after Battery Disconnect.  Additionally, record any stored seat position(s) before proceeding. Relearn any seat position memory after work is complete. If the power rear gate (PRG) height has been customized, that position must also be noted and relearned.

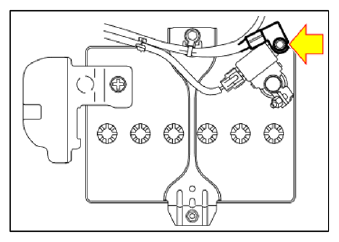

STEP 2:  CAREFULLY disconnect the battery sensor from the negative ground terminal and wait at least 60 seconds before continuing.

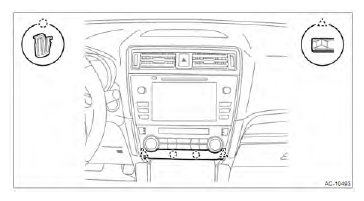

STEP 3:  Remove the Center Grille Assembly.

1. Release the clips and claws.
2. Disconnect the connector and remove the Grille Assembly.
3. Disconnect and remove the hazard switch.

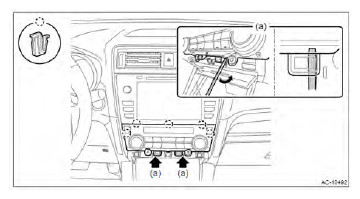

STEP 4:  Remove the Heater Control Assembly.

1. Release the clips and claws.
2. Remove the panel.
3. Remove the mounting screws.
4. Detach the heater control assembly.

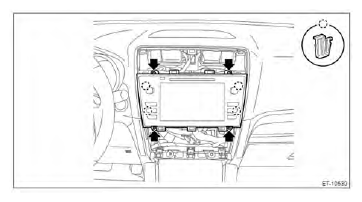

STEP 5:  Remove the audio assembly.

1. Remove the mounting screws.
2. Release the mounting clips.
3. Disconnect all electrical connections.
4. The audio assembly can then be removed.

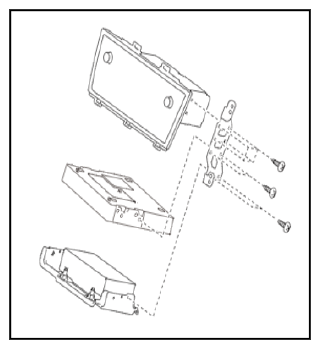

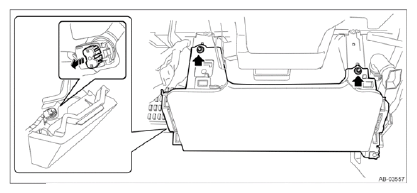

STEP 6:  Remove the DCM.

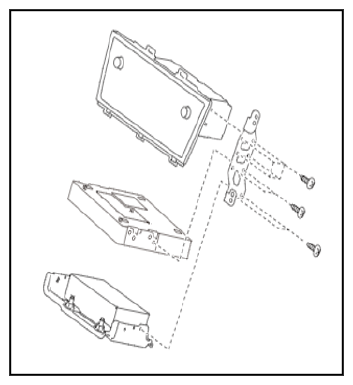

1. CAREFULLY remove the bracket mounting screws.
2. Remove the DCM and the backup module assembly together.

STEP 7: Install the new DCM and reinstall all parts in the reverse order of disassembly.

WRX DCM REMOVAL PROCEDURE/INFORMATION

STEP 1:  Refer to the applicable Service Manual and review: General Description > Repair Contents > Action required before & after Battery Disconnect.  Additionally, record any stored seat position(s) before proceeding. Relearn any seat position memory after work is complete. If the power rear gate (PRG) height has been customized, that position must also be noted and relearned.

STEP 2:  CAREFULLY disconnect the battery sensor from the negative ground terminal and wait at least 60 seconds before continuing.

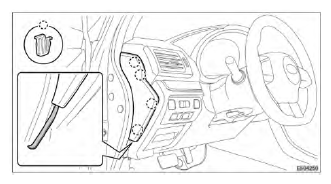

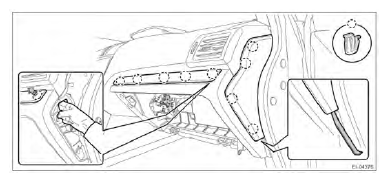

STEP 3:  Using a plastic trim tool, remove the left side instrument panel cover.

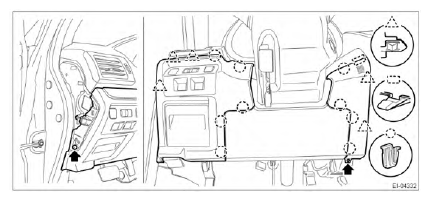

STEP 4:  Remove the left inner and outer lower instrument panels.

1. Remove the mounting screws.
2. Release the mounting clips and claws.

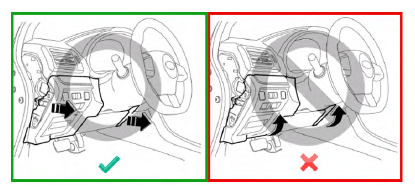

3. Pull both panels toward the rear of the vehicle.
4. Disconnect all electrical connections.

STEP 5:  Remove the knee airbag module.

1. Remove the mounting nuts.
2. CAREFULLY disconnect the electrical connection.

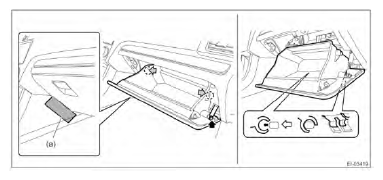

STEP 6:  Remove the glove box assembly.

1. Apply protective tape to the lower center panel section shown as (a) in the right image.
2. Disconnect the damper from the glove box.
3. Release the stoppers and pull the glove box toward the rear of the vehicle.

STEP 7:  Remove the glove box backing panel.

1. Using a plastic trim tool, remove the right side instrument panel cover.
2. Release the clips and removed the instrument panel ornamental trim.

   TIP:  The instrument panel ornamental trim can be removed by applying pressure from the backside.

3. Remove the glove box LED and disconnect the electrical connection.

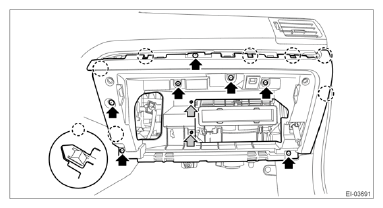

4. Removed the mounting screws.
5. Release the claws and harness clamp.
6. The glove box backing panel can then be removed.

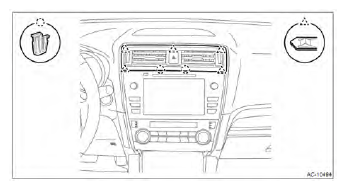

STEP 8:  Remove the center grille assembly.

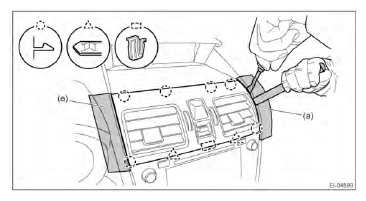

1. Apply protective tape to the instrument panel section shown as (a) in the right image.
2. Release the claw using a plastic trim tool or a clip removal to with protective tape applied to the contact area.
3. Disconnect the electrical connector and remove the center grille assembly.

STEP 9:  Remove the audio assembly.

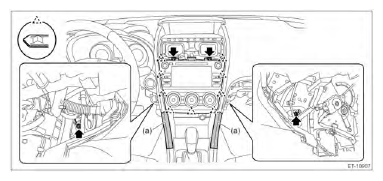

1. Apply protective tape the center storage area section indicated as (a) in the lower right image.
2. Remove the mounting screws and bolts.
3. Release the mounting claws and partially remove the audio assembly to gain access to the electrical connections.
   CAUTION: If the antenna cable interferes with the removal side mounting bolts, move the antenna cable before attempting to remove the bolts.
4. Disconnect the electrical connectors and remove the audio assembly.

STEP 10:  Remove the DCM.

1. CAREFULLY remove the bracket mounting screws.
2. Remove the DCM and the backup module assembly together.

STEP 11:  Install the new DCM and reinstall all parts in the reverse order of disassembly.

DCM BYPASS BOX REMOVAL

In a case when STARLINK is to be re-subscribed for a vehicle with a DCM Bypass Box installed, the following procedure is required.

STEP 1:  Disconnect the ground terminal from the battery sensor.

STEP 2:  Remove the center grille assembly.

STEP 3:  Remove the heater control assembly.

STEP 4:  Remove the audio assembly.

1. Remove the screws and release the clip.
2. Disconnect the connector and remove the audio assembly.

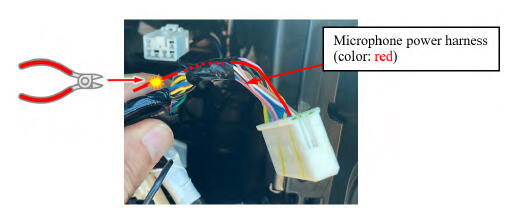

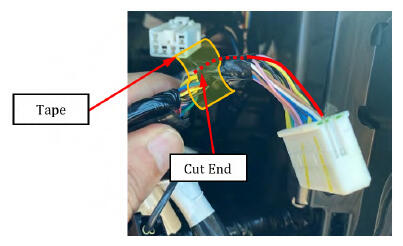

3. Cut the microphone power wire (color: red) at the end of connector i87 pin #4.
4. Bundle the cut red wire for the microphone into the vehicle harness so the cut end is covered.

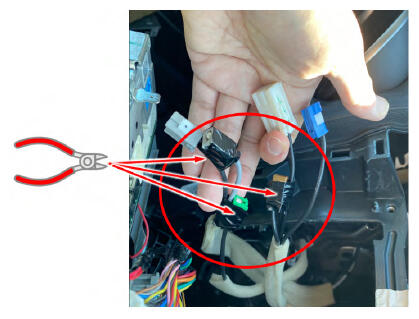

5. Remove the tape from the three bundled antenna connectors.

STEP 5:  Remove the DCM Bypass Box.

1. CAREFULLY remove the mounting screws.
2. Remove the DCM Bypass Box.

STEP 6:  Install the DCM.

1. Install the backup battery.
2. Install the DCM.
3. Install the audio assembly or navigation assembly.
4. Install the heater control assembly.
5. Install the center grille assembly.
6. Connect the ground terminal to battery sensor. Refer to STIS: REPAIR CONTENTS > NOTE > BATTERY  .
7. Perform the registration procedure if the DCM is replaced with a new part. Refer to STIS: ENTERTAINMENT & MONITORING > Telematics System > OPERATION
8. Check the LED lighting condition of the Telematics button. Refer to STIS: TELEMATICS SYSTEM > (DIAGNOSTICS) > Check List for Interview > CHECK > LED ILLUMINATION STATUS LIST

WARRANTY/CLAIM INFORMATION

The Warranty Extension for the Data Communication Module is extended from the original Warranty term of 3 years (36 months) or 36,000 miles to 8 years (96 months) or 150,000 miles (whichever comes first).

Original Warranty	Warranty Extension
3 Years/36K Miles	8 Years/150K Miles

Labor Description	Labor Operation #	Labor Time	Fail Code
WARRANTY EXTENSION - TEST AND REPLACE TELEMATICS UNIT	B067-086	.9	Z V V-43
BATTERY TEST & REPLACEMENT(1)	C800-203	.4
OR
BATTERY TEST & CHARGE - NO REPLACEMENT	C800-223	.3
(1) Battery test code is required for claim entry

IMPORTANT REMINDERS:

• SOA strongly discourages the printing and/or local storage of service information as previously released information and electronic publications may be updated at any time.
• Always check for any open recalls or campaigns anytime a vehicle is in for servicing.
• Always refer to STIS for the latest service information before performing any repairs.
