Inverter Cooling System
Inverter Cooling System
WARNING:
This page is about a different variant/trim than selected.

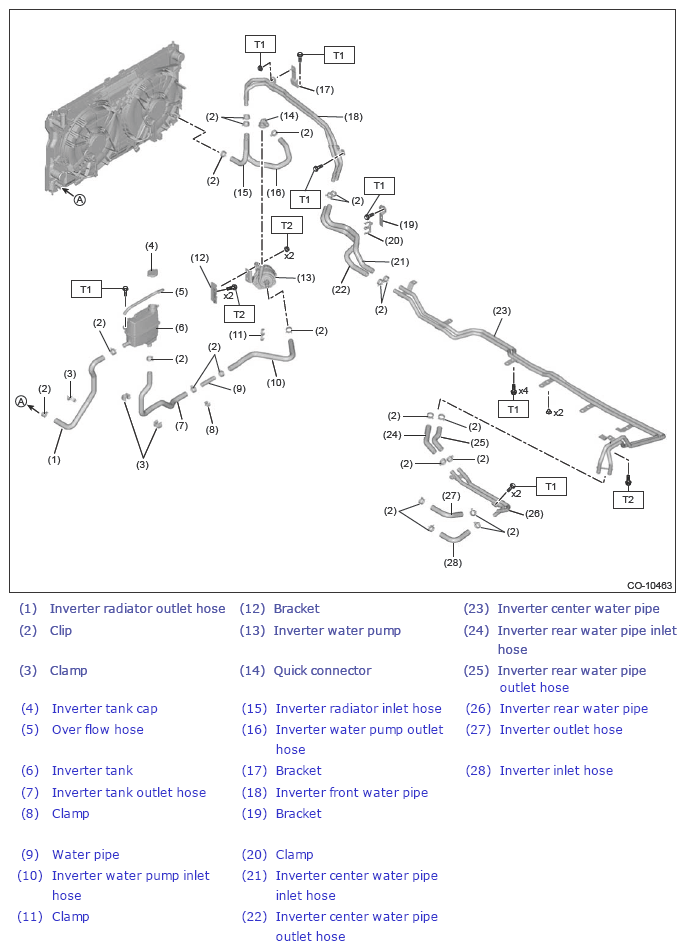

Fig 1: Inverter Cooling System Components (With Torque Specifications)
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.8, 5.5)
T2: 18 (1.8, 13.3)
Courtesy of SUBARU OF AMERICA, INC.
