Diagnostic Method

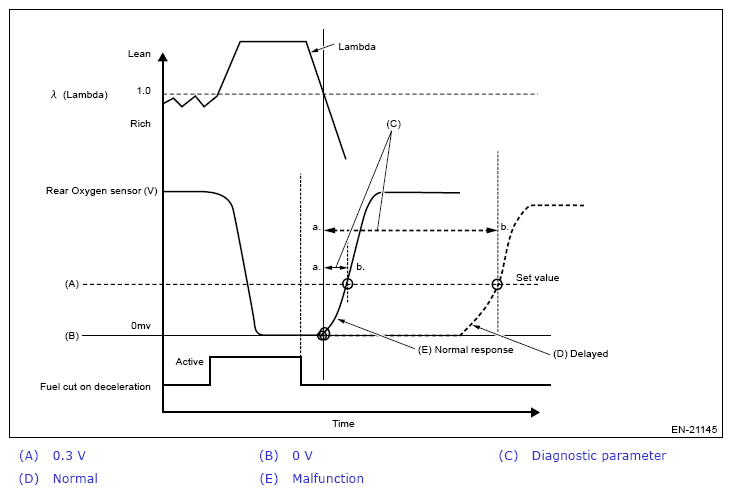

Detect the trouble by calculating the time from the completion of the fuel cut to the beginning of the rear oxygen sensor voltage starting to rise.
Judge as NG when the following conditions are established.
JUDGMENT VALUE SPECIFICATION
| Malfunction Criteria | Threshold Value |
|---|---|
| Output voltage value of rear oxygen sensor Elapsed time |
Less than 0.2V More than value of Map |
AMOUNT OF INTAKE AIR - MAP
| Amount of intake air (g/s (oz/s)) | 18.00 (0.63) | 21.00 (0.74) | 22.00 (0.78) | 24.00 (0.85) | 40.00 (1-41) |
|---|---|---|---|---|---|
| Elapsed time (ms) | 7000 | 6000 | 6000 | 6000 | 6000 |
Time needed for diagnosis: Less than 1 s
Malfunction indicator light illumination: Illuminates when malfunction occurs in 2 continuous driving cycles.
