Section 23 (P-HEV Hybrid Powertrain Control System (Diagnostics - Introduction))
>>
General Description
>>
System Block Diagram
System Block Diagram
WARNING:
This page is about a different variant/trim than selected.

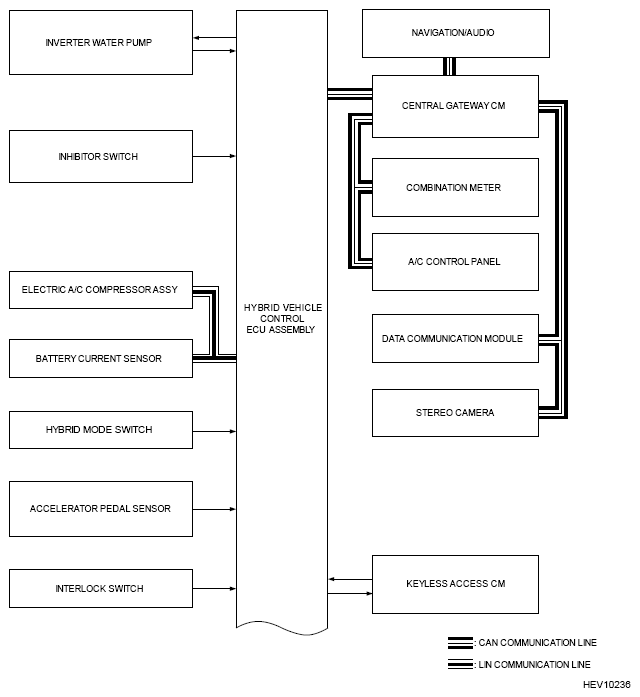

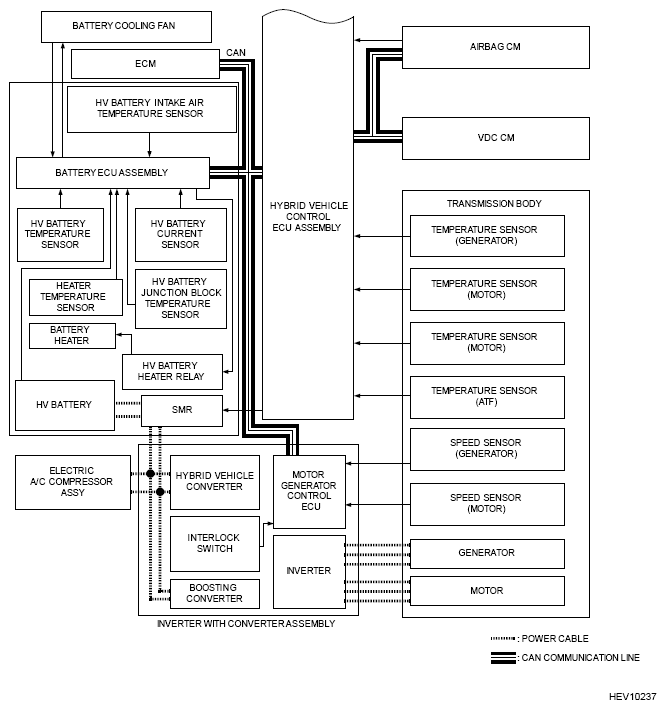

Hybrid/Battery control hybrid powertrain control
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.

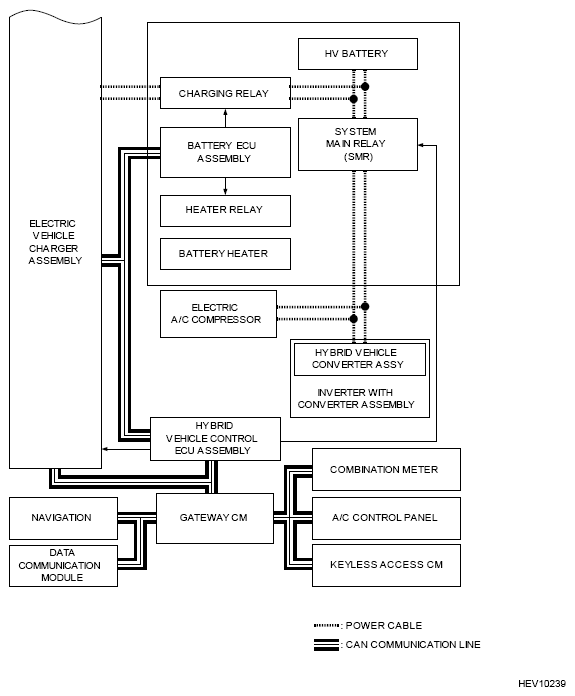

Hybrid/Battery control plug-in charger
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
