Circuit Figure

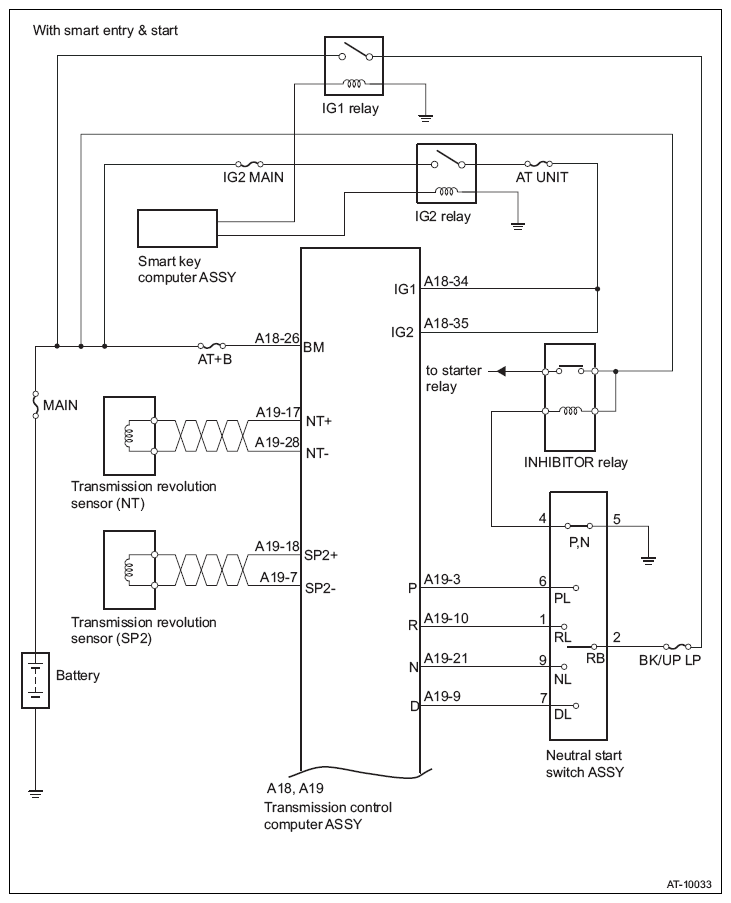

G12587366

Courtesy of SUBARU OF AMERICA, INC.

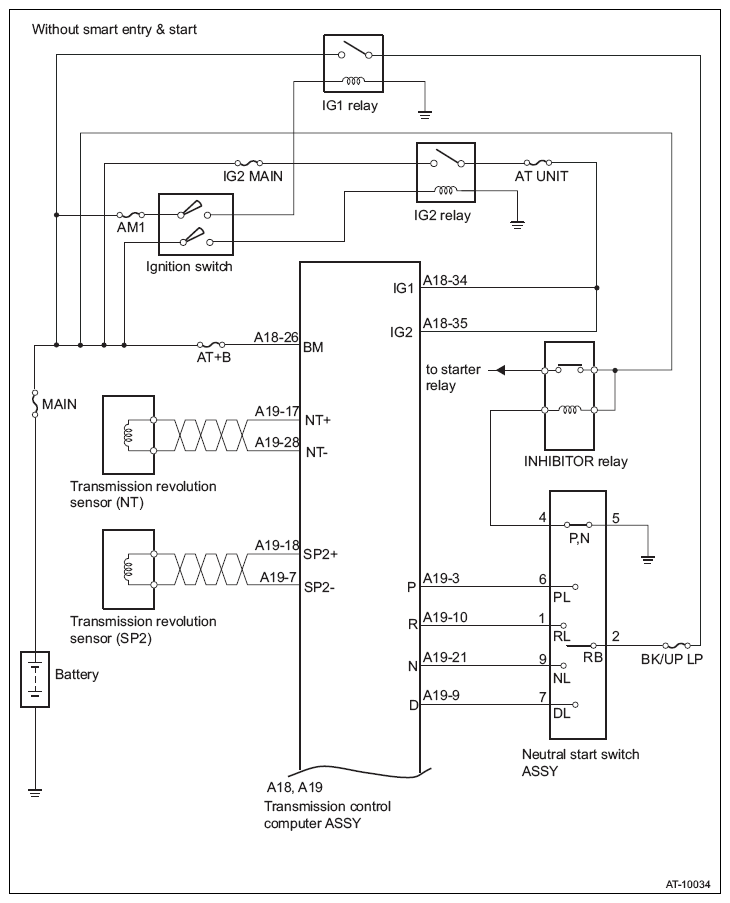

G12587367

Courtesy of SUBARU OF AMERICA, INC.

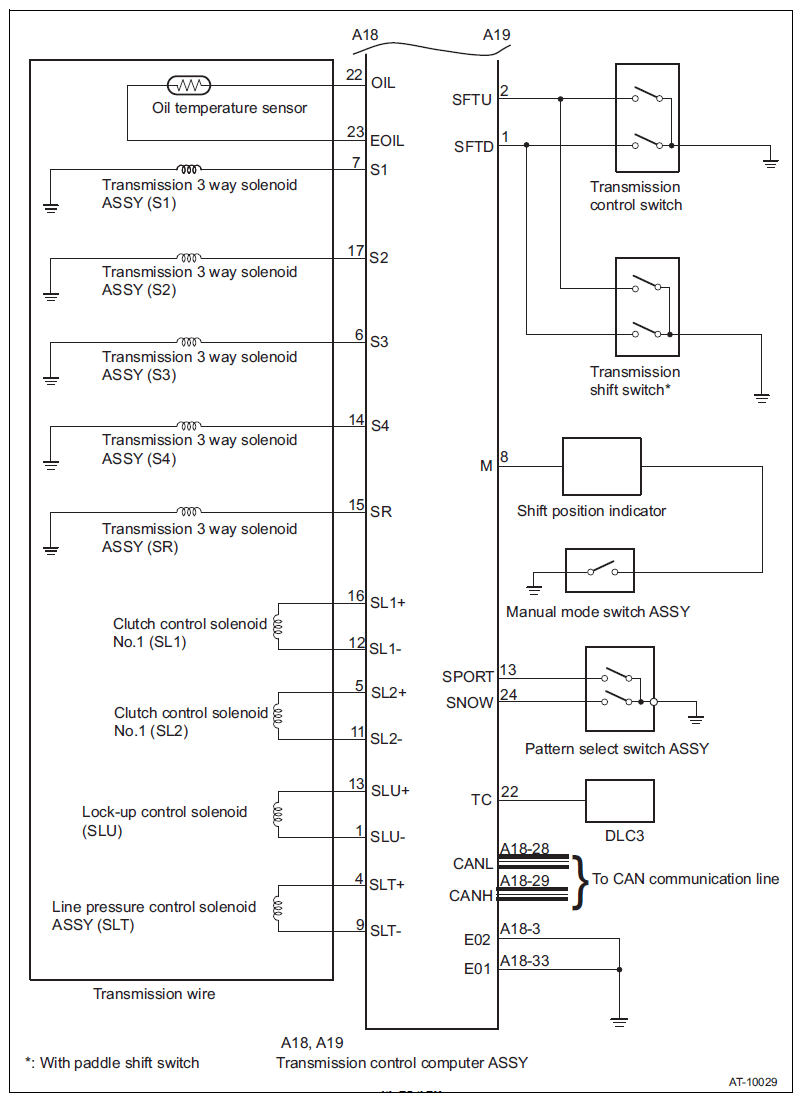

G11259322

Courtesy of SUBARU OF AMERICA, INC.

G12587369

Courtesy of SUBARU OF AMERICA, INC.
