Subaru
>>
2019
>>
Ascent Base
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Transaxle (Diagnostics)
>>
General Description
>>

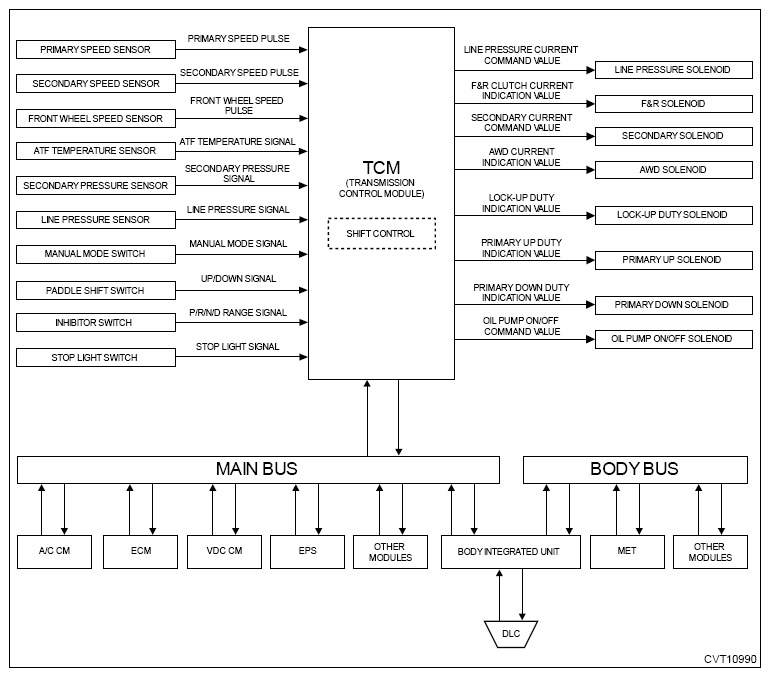

System Block Diagram
System Block Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
