EGR Control Valve: Installation

Set a new gasket.
Set the EGR control valve, and install the stud bolts using TORX® socket E8.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Temporarily tighten the nuts securing the EGR control valve.

Courtesy of SUBARU OF AMERICA, INC.
Install the bolts securing the EGR control valve to the EGR cooler.
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)
Connect the connector (A) to the EGR control valve.

Courtesy of SUBARU OF AMERICA, INC.
Tighten the nuts securing the EGR control valve and the bolts securing the EGR cooler in the order of (1) → (2) → (3) → (4).
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

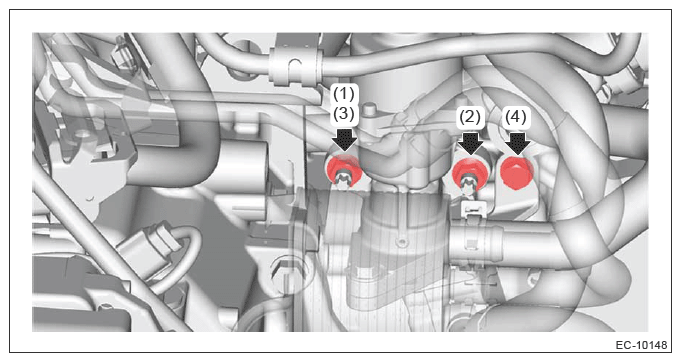

Fig 1: EGR Control Valve Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the intercooler, Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>INSTALLATION .
Connect the battery ground terminal. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
