Washer Tank

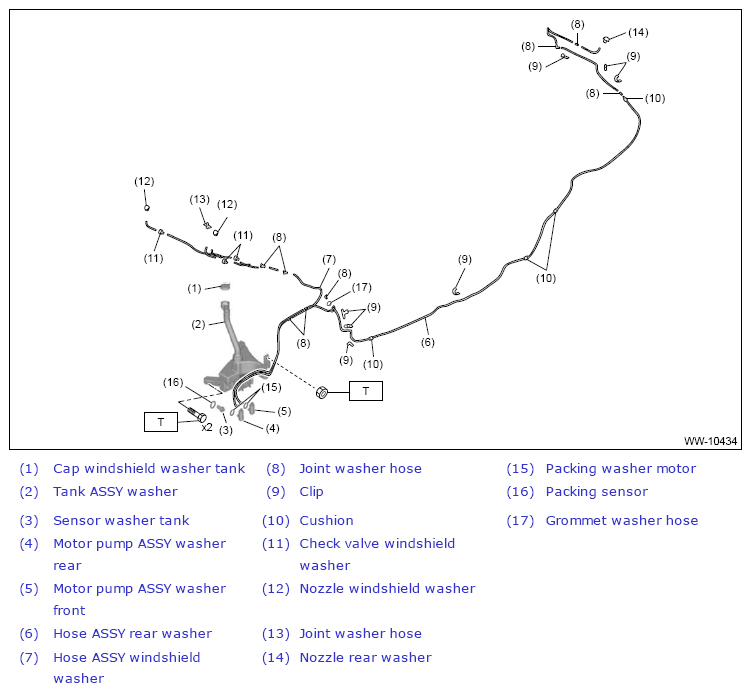

Fig 1: Washer Tank Components Location (With Tightening Torque Specification)

G13200873

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 6 (0.6, 4.4)
