Stator Coil

WARNING: This page is about a different variant/trim than selected.

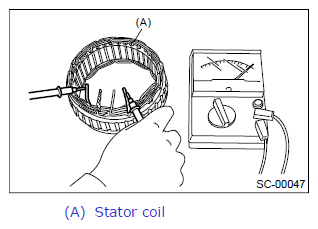

  1. Inspect continuity between the stator coil lead wire terminals. If the resistance is 1 Ω or more, replace the stator coil.
    G12441420
  2. Inspect the continuity between the stator coil stator core and lead wire terminals. If the resistance is 1 Ω or less, replace the stator coil.
    G07910122
