Auto Headlight Beam Leveler Control Module: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>General Description>CAUTION
  1. Disconnect the battery ground cable and wait for at least 60 seconds before starting work. Ref. to NOTE>BATTERY
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the cover assembly - instrument panel LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>Instrument Panel Lower Cover>REMOVAL
  3. Remove the knee airbag module. Ref. to AIRBAG SYSTEM>Knee Airbag Module>REMOVAL
  4. Release the lock and remove the fuse holder.

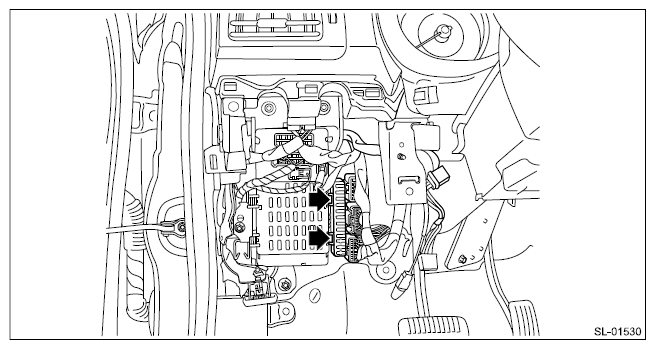

    G12455838
  5. Remove the relay & fuse box.
    1. Disconnect the connector.
    2. Remove the bolts and nuts, and remove the relay & fuse box.

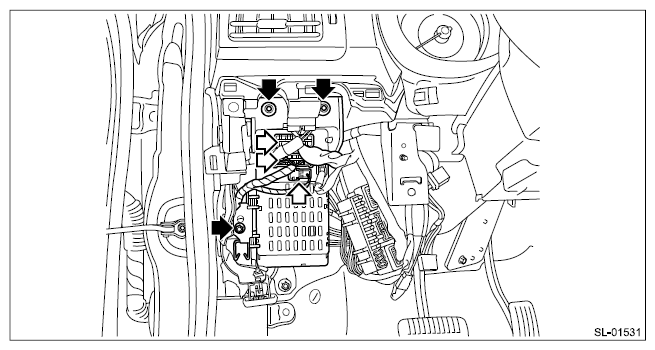

      G12455839
  6. Disconnect the connector of body integrated unit.

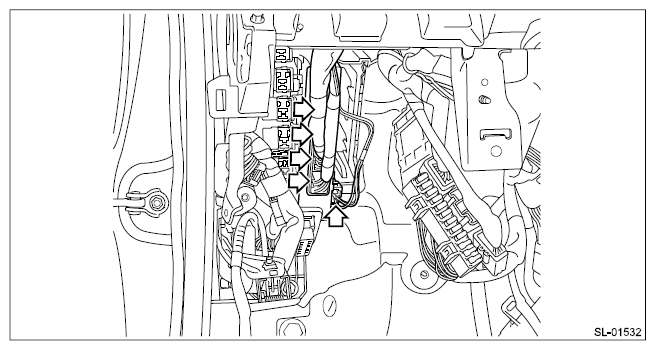

    G12455840
  7. Remove the auto headlight beam leveler Control Module.
    1. Disconnect the connector.
    2. Release the claws and pull out the auto headlight beam leveler Control Module.

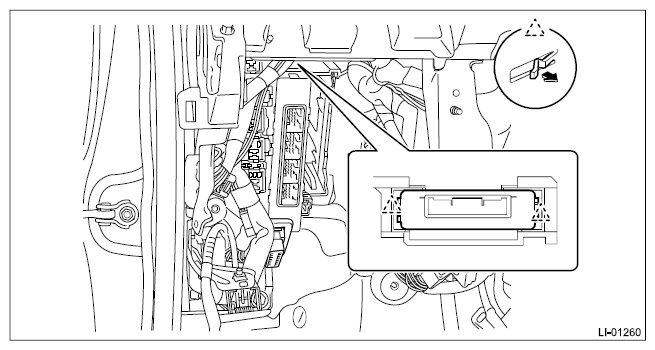

      G12455841
