MT Gear Shift Cable: Removal

Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Lift up the vehicle.
Remove the front exhaust pipe. Ref. to FRONT EXHAUST PIPE .
Remove the center exhaust cover.

Fig 1: Locating Center Exhaust Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the cable clamp.

Fig 2: Removing Cable Clamp
Courtesy of SUBARU OF AMERICA, INC.

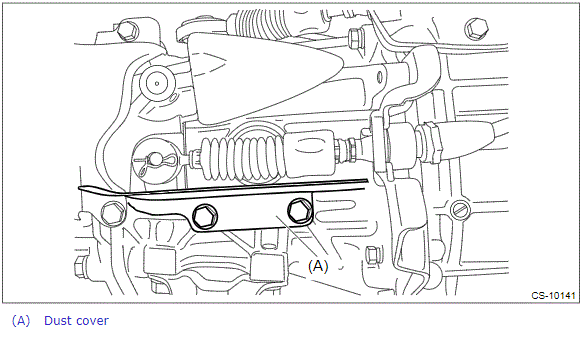

Remove the dust cover.

Fig 3: Removing Dust Cover
Courtesy of SUBARU OF AMERICA, INC.

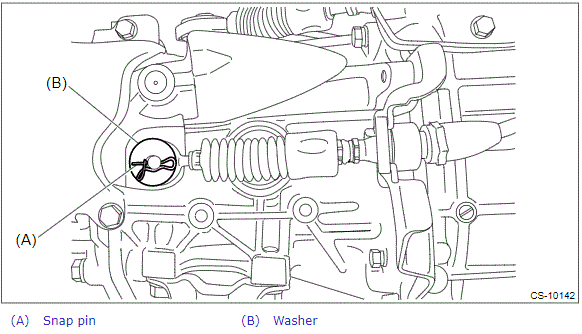

Remove the snap pin and washer.

Fig 4: Locating Snap Pin And Washer
Courtesy of SUBARU OF AMERICA, INC.

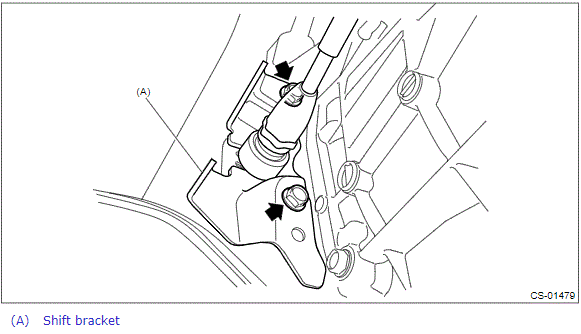

Remove the bolts holding the shift bracket.

Fig 5: Locating Shift Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the shift bracket together with the MT gear shift cable.

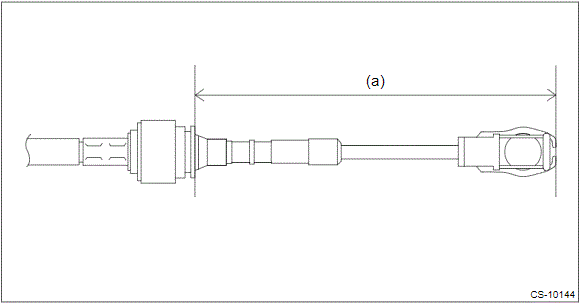

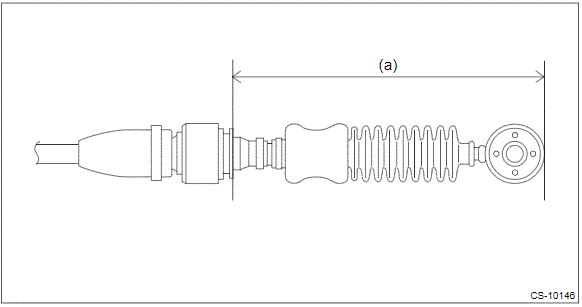

CAUTION: Do not apply excessive load while holding the part (a).

Fig 6: Locating MT Gear Shift Cable
Courtesy of SUBARU OF AMERICA, INC.

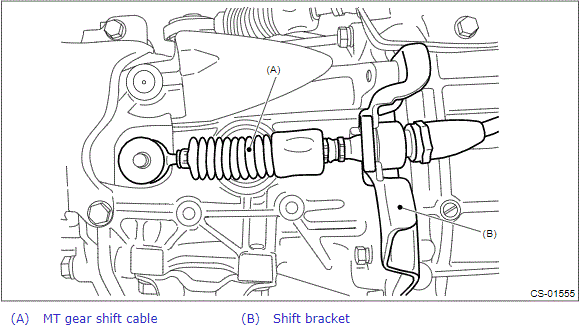

Fig 7: Locating MT Gear Shift Cable And Shift Bracket
Courtesy of SUBARU OF AMERICA, INC.

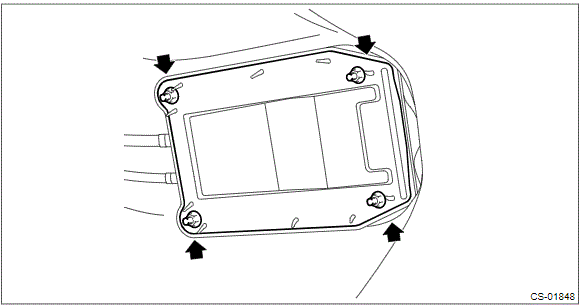

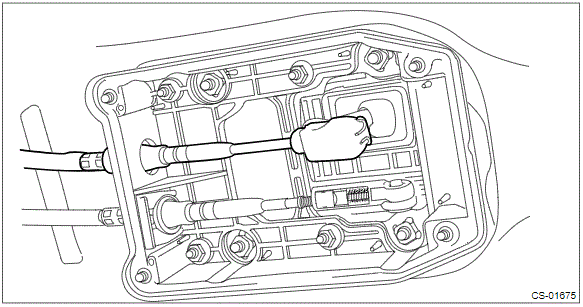

Remove the cable cover plate.

Fig 8: Removing Cable Cover Plate
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the MT gear shift cable.
CAUTION:
- Be careful not to deform the cable inner.
- Do not apply excessive load while holding the part (a).

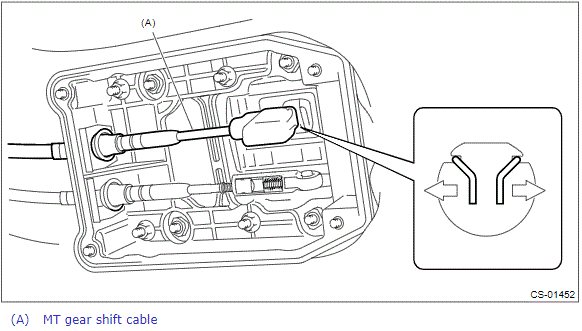

NOTE: Pull out down the MT gear shift cable to spread the spring.

Fig 10: Locating Springs On MT Gear Shift Cable
Courtesy of SUBARU OF AMERICA, INC.

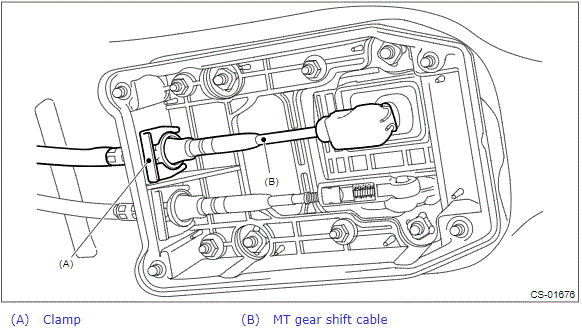

Remove the clamp.

Fig 11: Locating Clamp
Courtesy of SUBARU OF AMERICA, INC.
Pull out the MT gear shift cable.
CAUTION:
- Do not bend MT gear shift cable at a sharp angle.
- Do not twist the cable inner excessively.
Fig 12: Locating MT Gear Shift Cable
Courtesy of SUBARU OF AMERICA, INC.
