Rear Alignment (Inspection Value)
| Suspension height (Tolerance: +12 mm-24 mm (+0.47 in-0.94 in )) |
mm (in) | 15 (0.59) |
| Camber (tolerance: ±0°45' Differences between RH and LH: 45' or less) | -1°20' | |

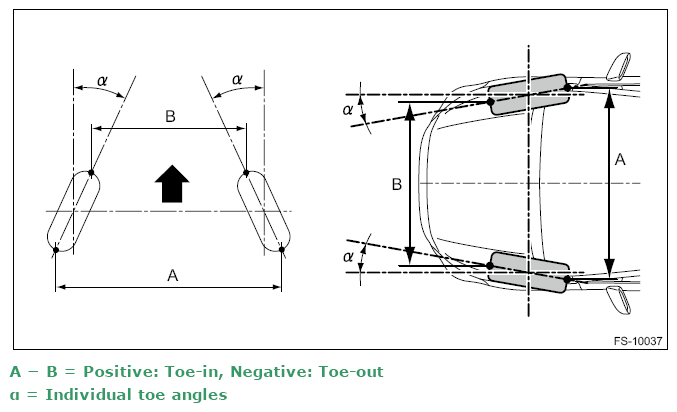

| Toe-in | mm (in) | IN3±3 (IN0.12±0.12) |
| Toe angle (sum of both wheels): IN0°15'±15' | ||
| Thrust angle (tolerance: 0°00±30') | 0°00' | |
NOTE:
- Adjust with the value less than the inspection value, taking aging variation into consideration.
- Front toe-in, rear toe-in and front camber can be adjusted. Adjust if the value of toe-in or camber exceeds the tolerance range of the specification chart.
- Other items except for front toe-in, rear toe-in and front camber that are described in the specification chart cannot be adjusted.
- If other items exceed the tolerance range of the specification chart, check the suspension parts and connections for deformation. If defective, replace with new parts.
