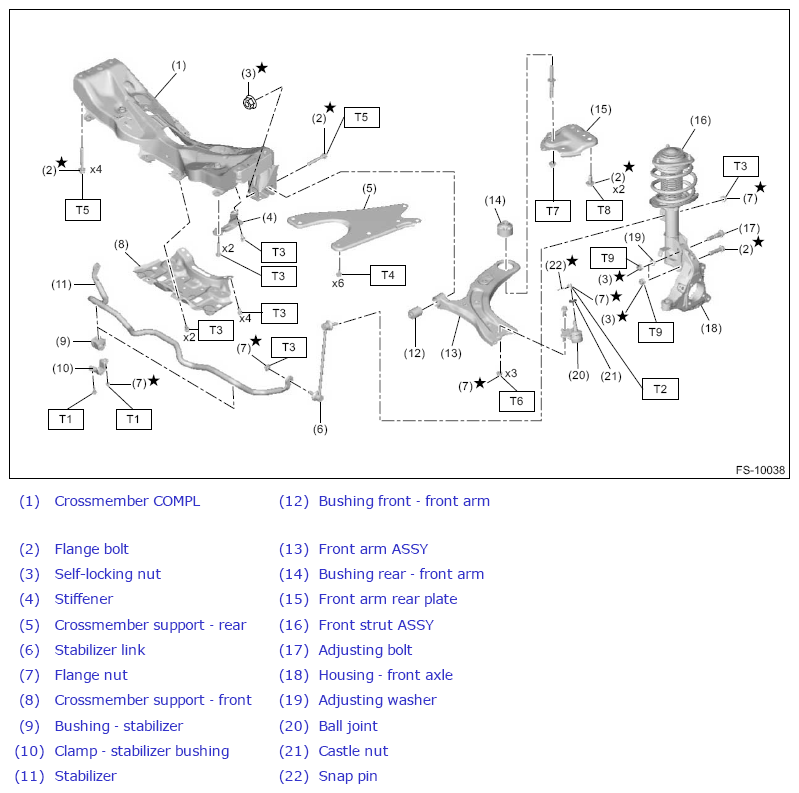

Front Suspension
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 25 (2.5, 18.4)
T2: 51 (5.2, 37.6)
T3: 60 (6.1, 44.3)
T4: 70 (7.1, 51.6)
T5: 95 (9.7, 70.1)
T6: 100 (10.2, 73.8)
T7: 110 (11.2, 81.1)
T8: 150 (15.3, 110.6)
T9: 155 (15.8, 114.3)
